HT500-1

The HT500-1 is a 500 kg-payload tracked mini dumper with hydraulic drive, steering and unloading. Its 700 mm width is particularly useful for restricted-access landscaping and material movement.

Operating weight: 413 kg
Rated payload: 500 kg
Engine: Briggs & Stratton
Fuel: Petrol

Machine highlights

Key features and dimensions.

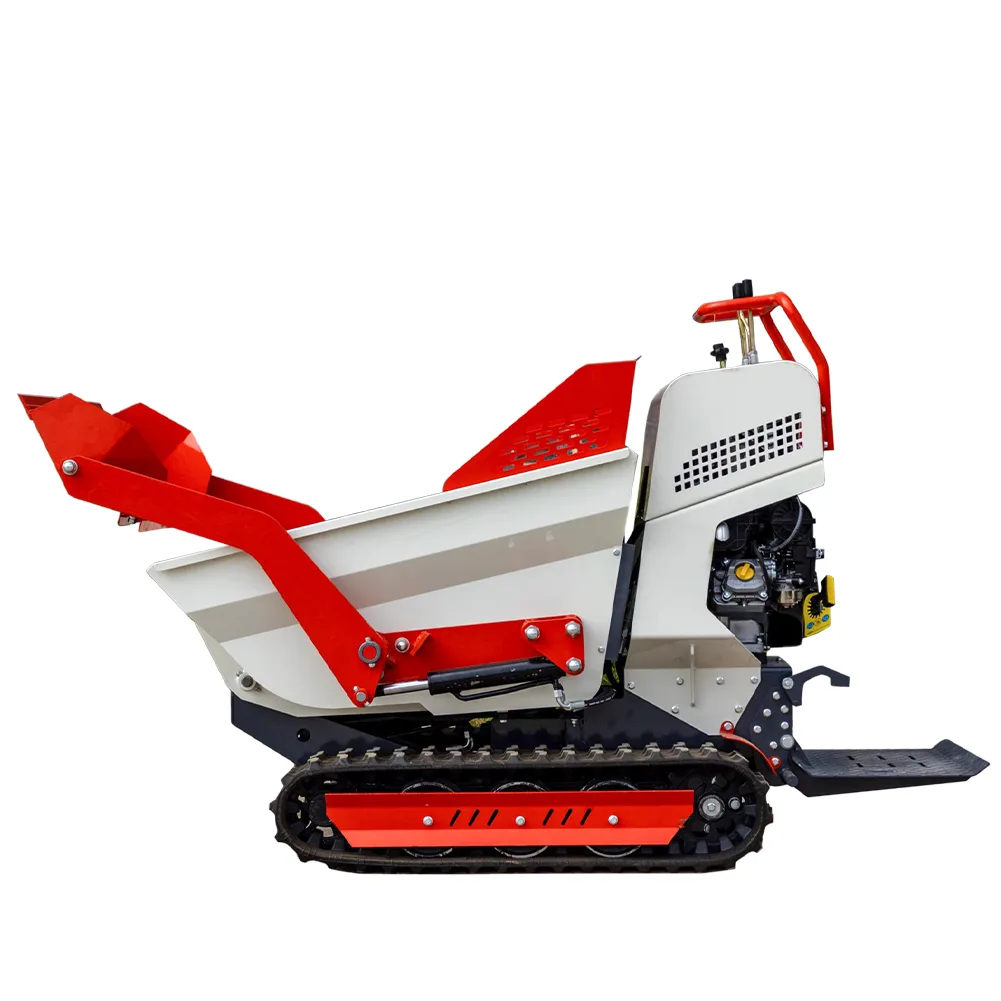

500 kg rated payload

The HT500-1 carries a rated 500 kg payload against a 413 kg operating weight. Payload should still be assessed alongside slope, surface and braking conditions.

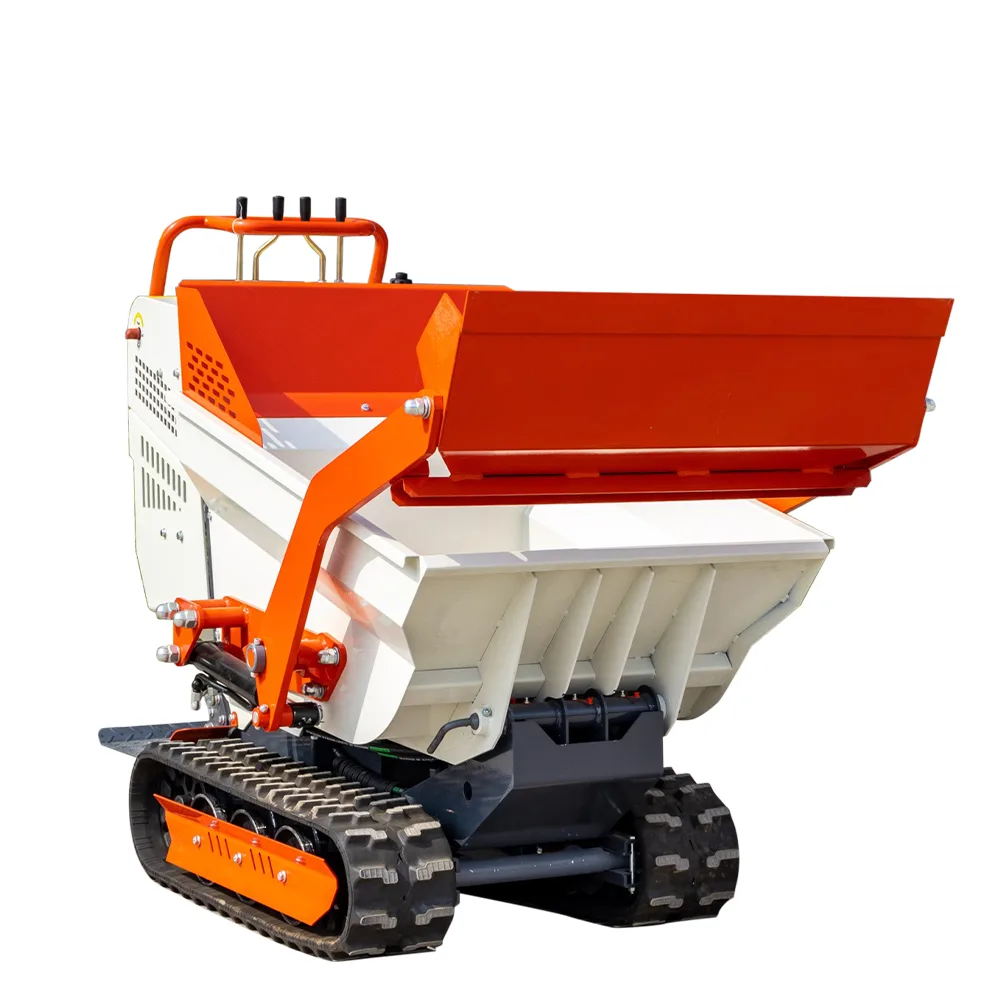

700 mm overall width

The narrow width makes this configuration relevant to garden paths, gateways and other access-limited material-handling jobs.

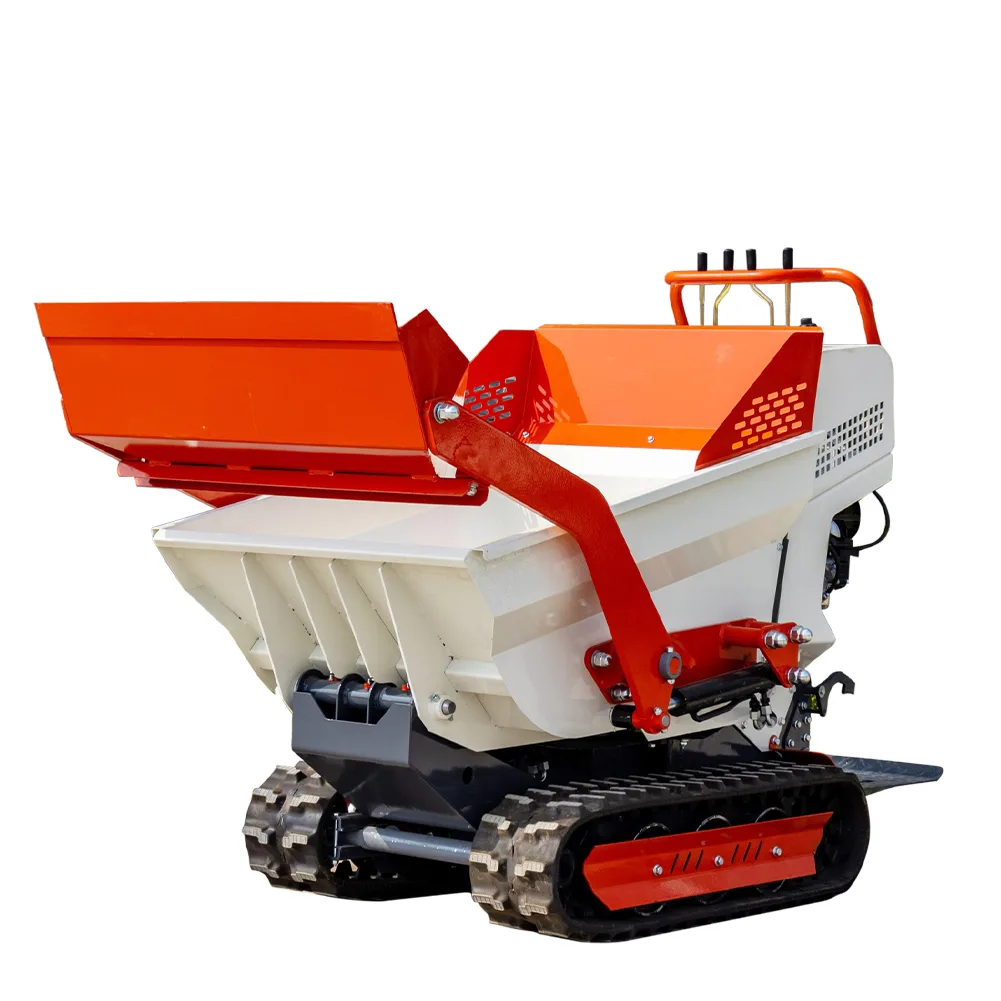

Hydraulic work functions

Drive, steering and unloading are hydraulic, while the hopper measures 816 × 680 × 620 mm.

Key specifications

HT500-1 at a glance.

Machine specifications in one place. Final values can vary by configuration, market and attachment package.

Operating weight: 413 kg
Rated payload: 500 kg
Engine: Briggs & Stratton
Fuel: Petrol
Hopper dimensions: 816 × 680 × 620 mm
Overall dimensions: 1,056 × 700 × 1,225 mm
Track width: 180 mm
Pump flow: 6 L/min
Drive and steering: Hydraulic
Unloading: Hydraulic

Model details

Important specifications.

This page covers the HT500-1 with the Briggs & Stratton petrol engine.
The HT-D500 is a separate configuration with different weight and dimensions.

Before deciding

Specifications do not tell the whole story.

Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.
