01

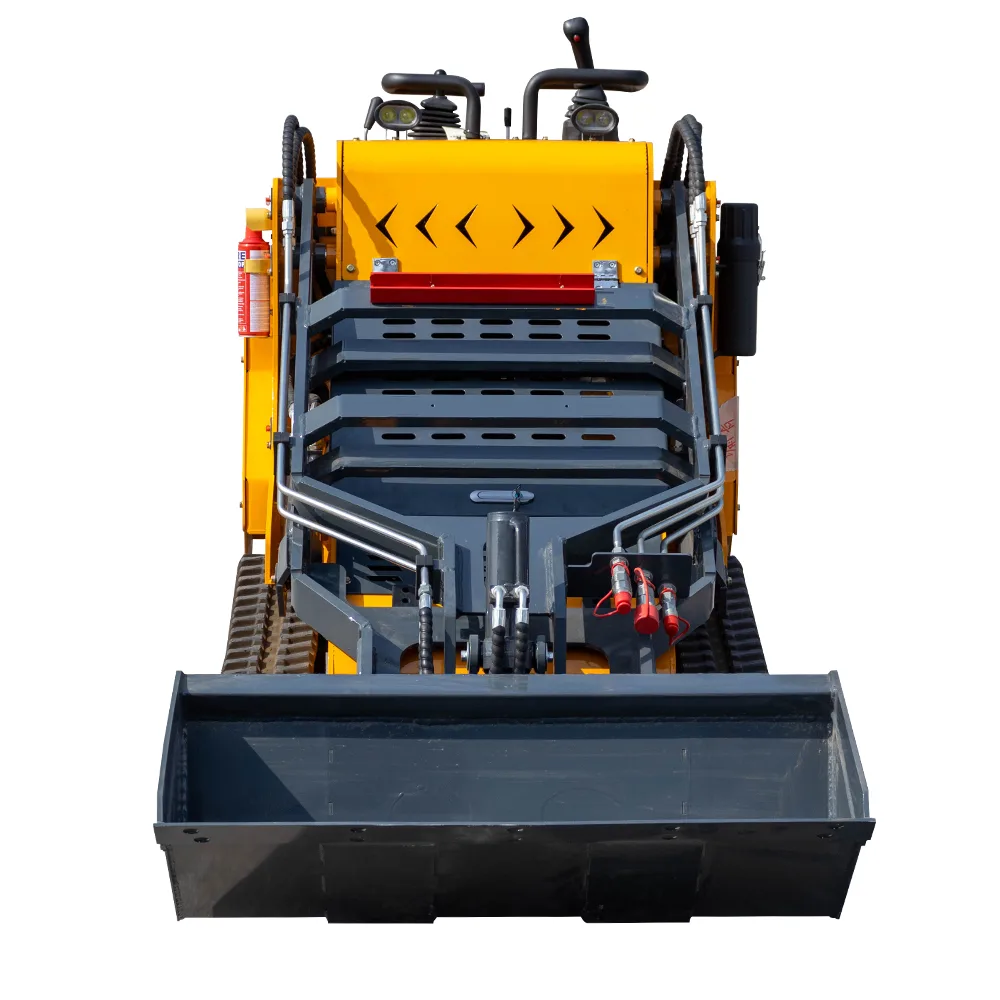

450 kg operating load
The standard 0.2 m³ bucket is paired with a 450 kg rated operating load and 530 kg maximum lifting force.
Mini machine guideSpecifications, dimensions and configuration details
HIGHTOP HT530
HIGHTOP · Compact skid steer
HT530
The HIGHTOP HT530 is a 1,330 kg compact tracked skid steer with a 450 kg operating load, 0.2 m³ bucket and 1,050 mm machine width.
- Operating weight
- 1,330 kg
- Rated load
- 450 kg
- Engine
- Kubota D1105
- Maximum power
- 14 kW @ 2,200 rpm
Machine highlights
Key features and dimensions.
02

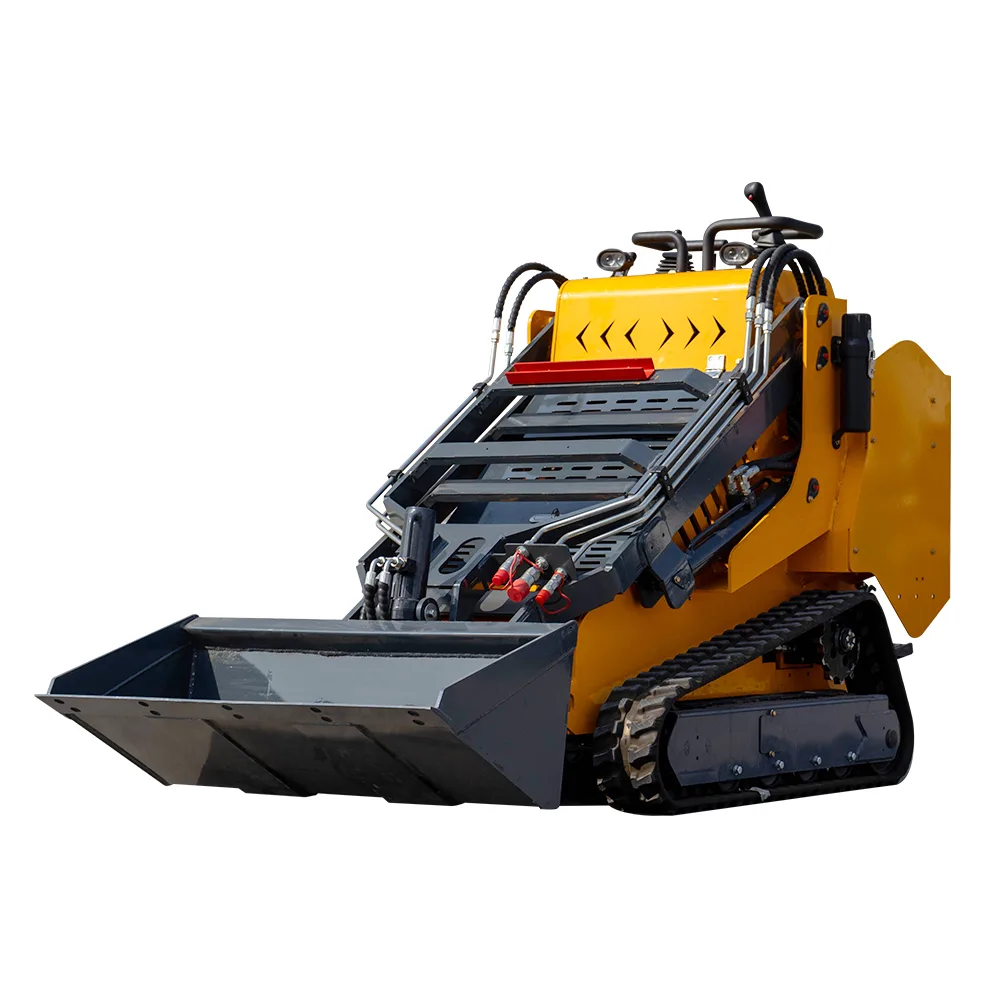

Kubota diesel engine
The 14 kW Kubota D1105 runs at 2,200 rpm, with a Perkins engine available for buyers who prefer that configuration.
03

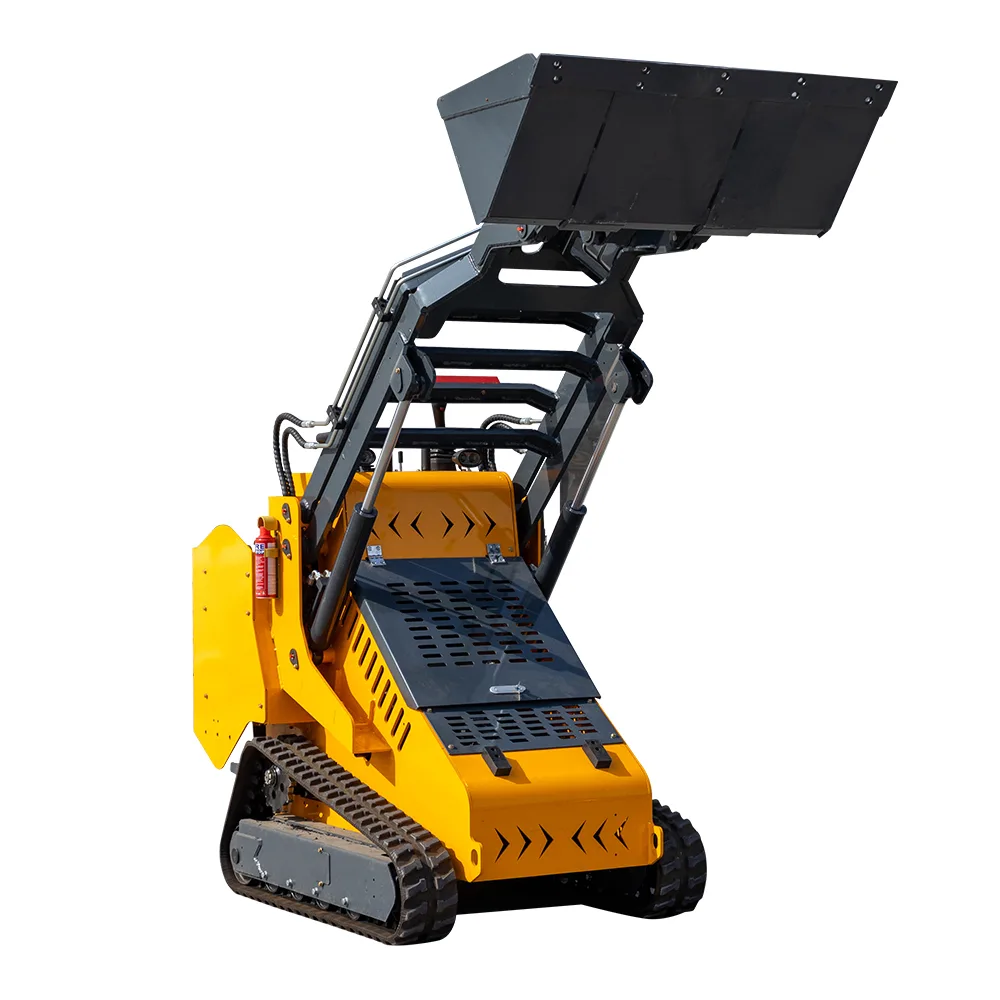

Attachment-ready hydraulics
Hydraulic flow reaches 32 L/min at up to 17 MPa for compatible buckets and powered attachments.
Key specifications
HT530 at a glance.
Machine specifications in one place. Final values can vary by configuration, market and attachment package.
- Operating weight
- 1,330 kg
- Rated load
- 450 kg
- Engine
- Kubota D1105
- Maximum power
- 14 kW @ 2,200 rpm
- Optional engine
- Perkins
- Bucket capacity
- 0.2 m³
- Maximum lifting force
- 530 kg
- Travel speed
- 0–4.5 km/h
- Maximum working height
- 2,630 mm
- Maximum dump height
- 1,535 mm
- Dump reach
- 715 mm
- Machine width
- 1,050 mm
- Bucket width
- 1,150 mm
- Length with bucket
- 2,745 mm
- Hydraulic pressure
- 0–17 MPa
- Hydraulic flow
- 0–32 L/min
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
Model details
Important specifications.
- Rated operating load is 450 kg; 530 kg is the maximum lifting force.
- The standard engine is the 14 kW Kubota D1105, with a Perkins engine available as an option.
Before deciding
Specifications do not tell the whole story.
Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.
