01
Twin vibrating drums
Both 600 mm drums vibrate automatically at 75 Hz, with a listed exciting force of 20 kN per drum for compacting asphalt, gravel and prepared sub-base.
Mini machine guideSpecifications, dimensions and configuration details
HIGHTOP TH600C
HIGHTOP · Compact road roller
TH600C

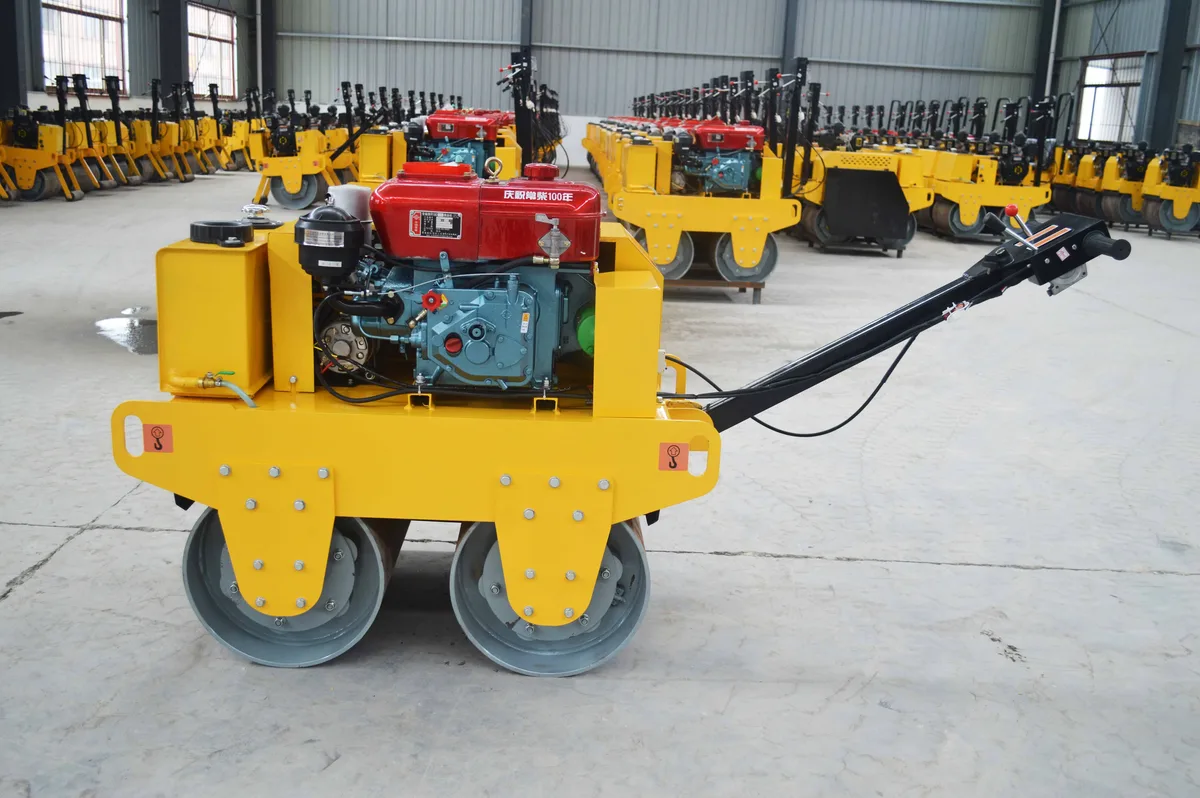

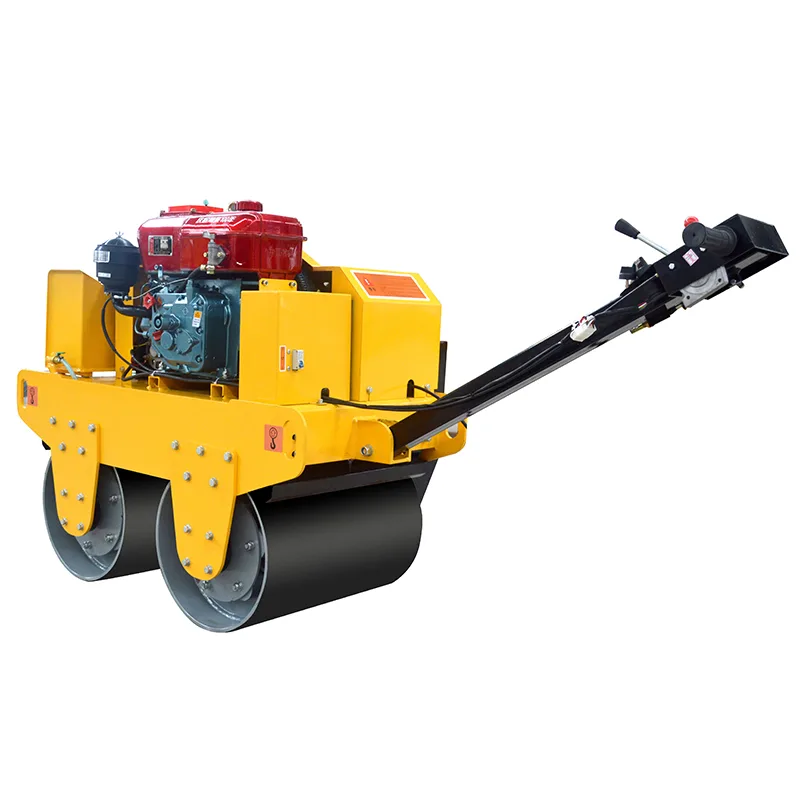

The HIGHTOP TH600C is a 550 kg walk-behind tandem roller with two 600 mm vibrating drums, hydraulic two-wheel drive and a 6 hp air-cooled diesel engine. Its 780 mm overall width suits asphalt repairs, trench reinstatement, paths, driveways and compacted gravel where a ride-on roller would be too large.
- Operating weight
- 550 kg
- Engine
- CF178FE air-cooled diesel
- Rated power
- 6 hp at 3,600 rpm
- Drum width
- 600 mm front / rear
Machine highlights
Key features and dimensions.
02
Hydraulic two-wheel drive
Hydraulic pumps and motors drive both drums, giving the walk-behind machine controlled forward and reverse travel from 0–4 km/h.
03
780 mm working width
The compact body can work along narrow paths, trench repairs and confined paved areas while retaining a 20 L water tank for drum wetting.
Key specifications
TH600C at a glance.
Machine specifications in one place. Final values can vary by configuration, market and attachment package.
- Operating weight
- 550 kg
- Engine
- CF178FE air-cooled diesel
- Rated power
- 6 hp at 3,600 rpm
- Drum width
- 600 mm front / rear
- Overall width
- 780 mm
- Travel speed
- 0–4 km/h
- Gradeability
- 30%
- Vibration frequency
- 75 Hz
- Nominal amplitude
- 0.5 mm
- Exciting force
- 20 kN × 2
- Drive system
- Hydraulic two-wheel drive
- Vibration system
- Automatic double-drum vibration
- Drum diameter
- 426 mm front / rear
- Water tank
- 20 L
- Fuel tank
- 3.5 L
- Fuel consumption
- 280 g/kWh
- Working dimensions
- 2,450 × 780 × 1,800 mm
- Package dimensions
- 1,350 × 850 × 1,250 mm
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
Model details
Important specifications.
- This profile covers the 6 hp CF178FE air-cooled diesel configuration.
- The operating handle extends the machine to 2,450 mm in working position; its listed package size is 1,350 × 850 × 1,250 mm.
Before deciding
Specifications do not tell the whole story.
Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.
