01

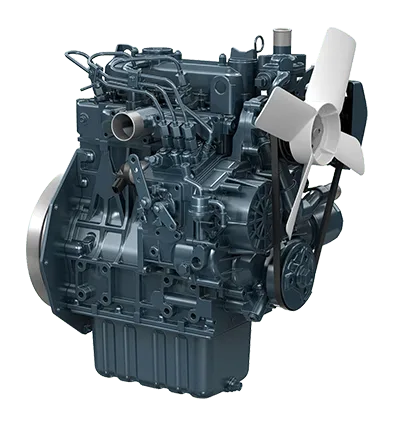

Kubota D1105 diesel
The three-cylinder, water-cooled D1105 produces 17.1 kW and is paired with a service layout designed for routine access.
Mini machine guideSpecifications, dimensions and configuration details
RIPPA RL06
RIPPA · Compact wheel loader
RL06
The RIPPA RL06 is a 1,620 kg articulated compact wheel loader with a 1,150 mm transport width, a 0.23 m³ bucket and a Kubota D1105 diesel engine. Its narrow body, four-wheel layout and quick-change hydraulics suit landscaping, agriculture, site cleanup and material handling in confined work areas.
- Operating weight
- 1,620 kg
- Rated load
- 300 kg
- Maximum load
- 600 kg
- Bucket capacity
- 0.23 m³
Machine highlights
Key features and dimensions.
02

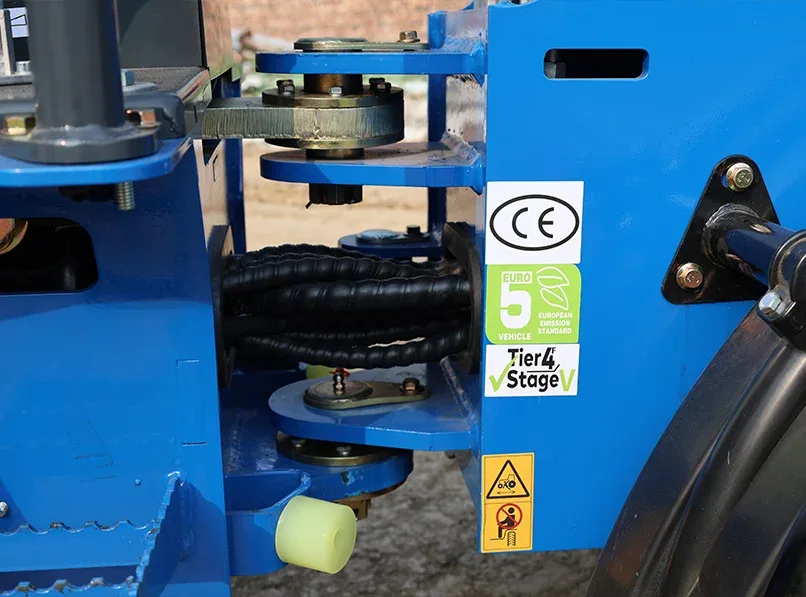

Quick-change hydraulics
Hydraulic quick connectors simplify compatible attachment changes for loading, handling and property-maintenance work.
03

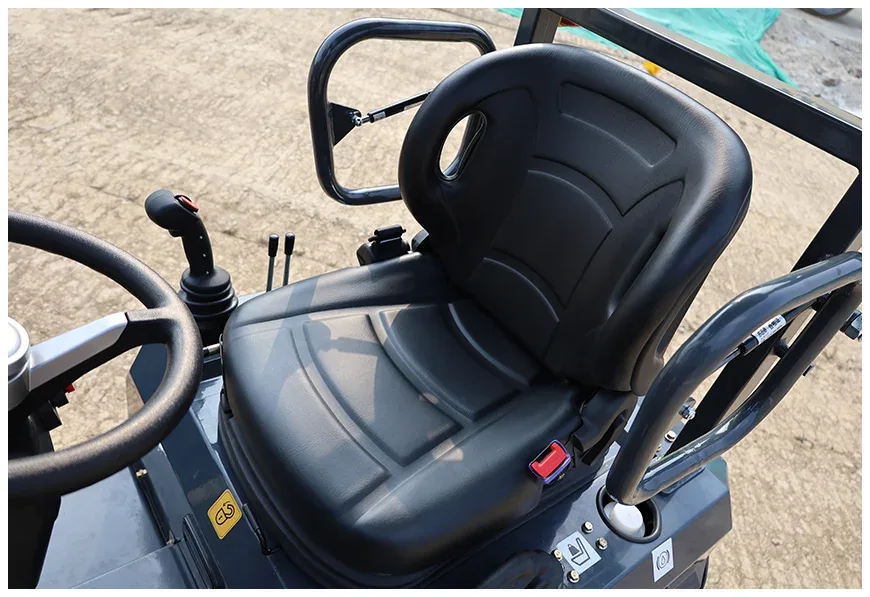

Compact articulated layout
A 1,150 mm transport width and 2,400 mm turning radius help the RL06 work around narrow paths, yards and material stacks.
Key specifications
RL06 at a glance.
Machine specifications in one place. Final values can vary by configuration, market and attachment package.
- Operating weight
- 1,620 kg
- Rated load
- 300 kg
- Maximum load
- 600 kg
- Bucket capacity
- 0.23 m³
- Engine
- Kubota D1105
- Maximum power
- 17.1 kW / 22.9 hp
- Rated engine speed
- 3,000 rpm
- Engine displacement
- 1.123 L
- Engine cylinders
- 3
- Cooling system
- Water-cooled
- Travel speed
- 0–8 km/h
- Gradeability
- 25%
- Maximum unloading height
- 2,060 mm
- Maximum loading height
- 3,380 mm
- Maximum unloading reach
- 650 mm
- Turning radius
- 2,400 mm
- Minimum ground clearance
- 155 mm
- Transport size
- 3,650 × 1,150 × 2,300 mm
- Transport length without bucket
- 3,120 mm
- Bucket width
- 1,150 mm
- Ground pressure
- 73.72 kPa
- Working hydraulic flow
- 42 L/min
- Travel hydraulic flow
- 96 L/min
- Hydraulic pressure
- 20 MPa
- Fuel tank
- 15 L
- Hydraulic oil tank
- 28 L
- Fuel consumption
- 1.3–1.5 L/h
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
Model details
Important specifications.
- These specifications cover the RL06 with the Kubota D1105 engine.
- The rated safe load is 300 kg; the maximum load is 600 kg.
Before deciding
Specifications do not tell the whole story.
Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.
