01

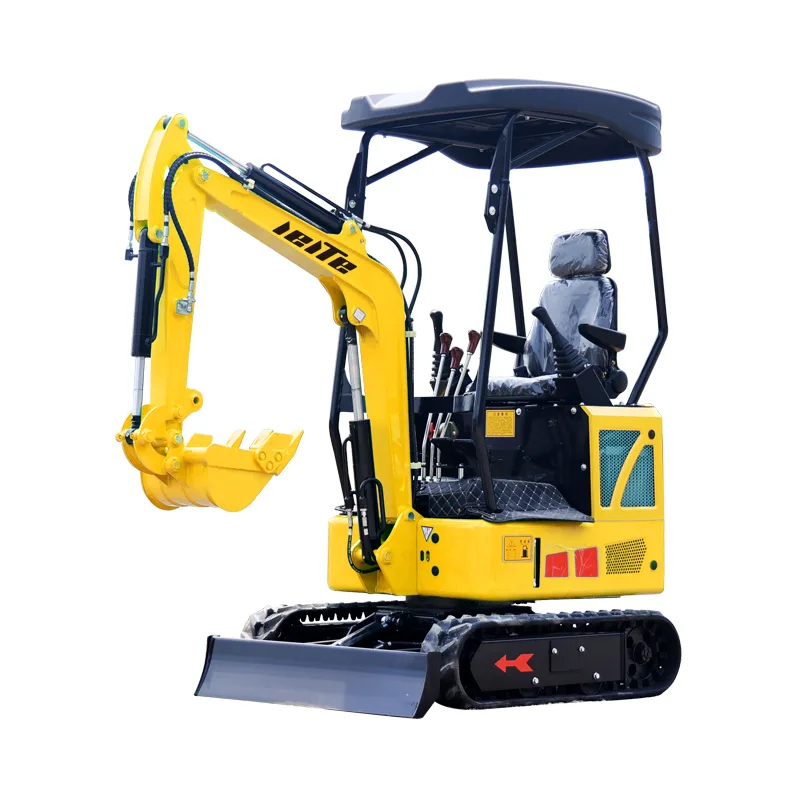

1,500 kg working size
The LT1015 combines a 1.5-tonne operating weight with 1,100 mm transport width for compact construction and landscaping jobs.
Mini machine guideSpecifications, dimensions and configuration details
LEITE LT1015
LEITE · Mini excavator
LT1015
The LEITE LT1015 is a 1,500 kg tracked mini excavator with a 25 hp LD380 engine, 1,500 mm digging depth and a 1,100 mm transport width.
- Operating weight
- 1,500 kg
- Engine model
- LD380
- Rated power
- 25 hp
- Engine displacement
- 1.35 L
Machine highlights
Key features and dimensions.
02

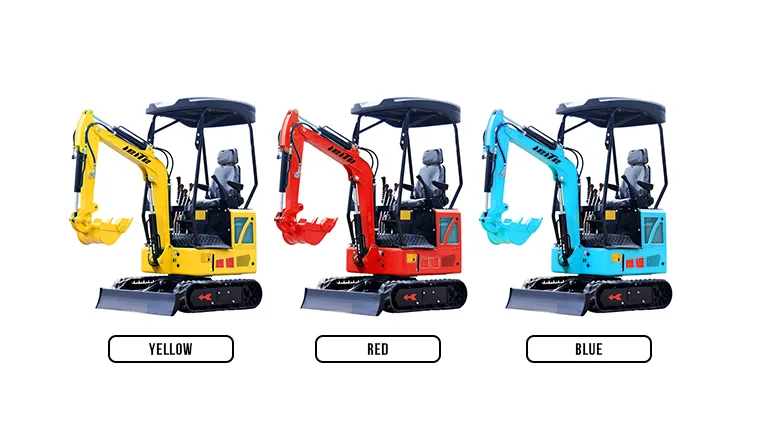

25 hp LD380 engine
The 1.35-litre LD380 diesel produces 25 hp and drives a 0.03 m³ standard bucket.
03

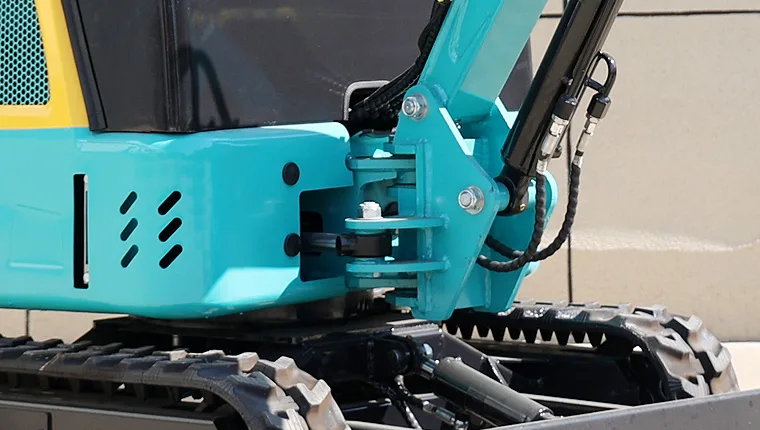

Side-swing boom
The boom swings 70° in one direction and 51° in the other, helping the machine dig close to walls and boundaries.
Key specifications
LT1015 at a glance.
Machine specifications in one place. Final values can vary by configuration, market and attachment package.
- Operating weight
- 1,500 kg
- Engine model
- LD380
- Rated power
- 25 hp
- Engine displacement
- 1.35 L
- Bucket capacity
- 0.03 m³
- Bucket width
- 420 / 400 mm with / without teeth
- Maximum digging depth
- 1,500 mm
- Vertical digging depth
- 1,300 mm
- Maximum digging distance
- 3,200 mm
- Maximum digging height
- 2,750 mm
- Maximum dump height
- 1,950 mm
- Travel speed
- 2 km/h
- Swing speed
- 9 rpm
- Overall dimensions
- 2,800 × 1,100 × 1,550 mm
- Gradeability
- 35°
- Bucket digging force
- 11 kN
- Fuel tank
- 15 L
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
Before deciding
Specifications do not tell the whole story.
Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.
