R10

The R10 ECO is a homeowner-friendly starter excavator for fence installation, backyard projects and routine light digging. Straightforward operation and upkeep make it approachable for seasonal property work.

Operating weight: 1,142 kg
Machine weight: 1,040 kg
Maximum power: 8.2 kW
Maximum digging depth: 1,833 mm

Machine highlights

Key features and dimensions.

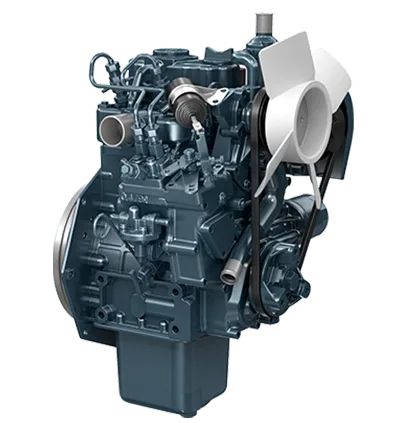

Efficient Kubota engine

The Kubota Z482 delivers 8.2 kW with low fuel consumption, vibration and operating noise.

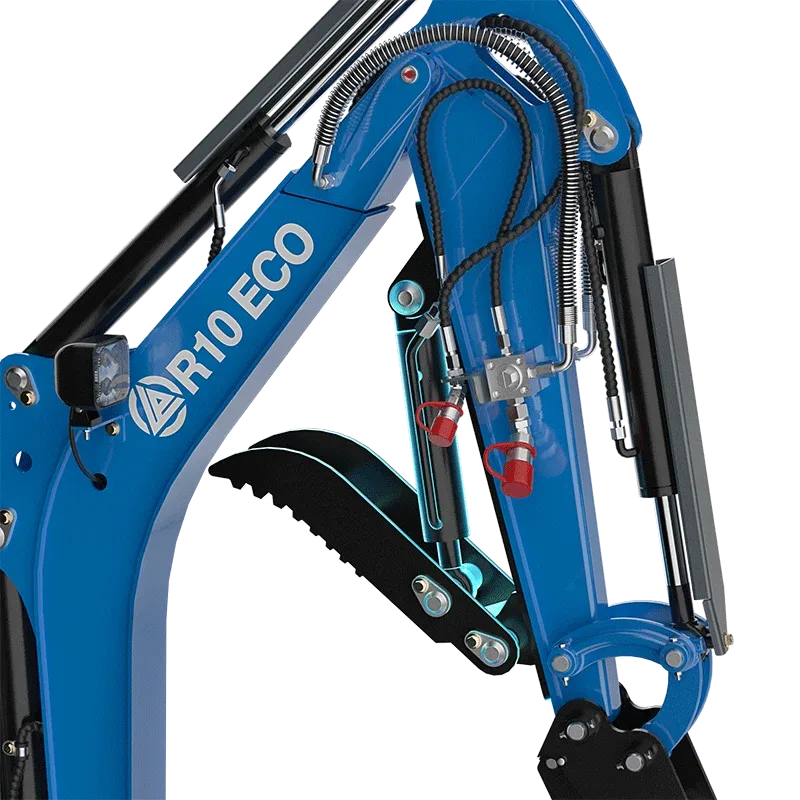

Hydraulic thumb

The factory hydraulic thumb helps grip rocks, timber and irregular materials with precise machine-powered control.

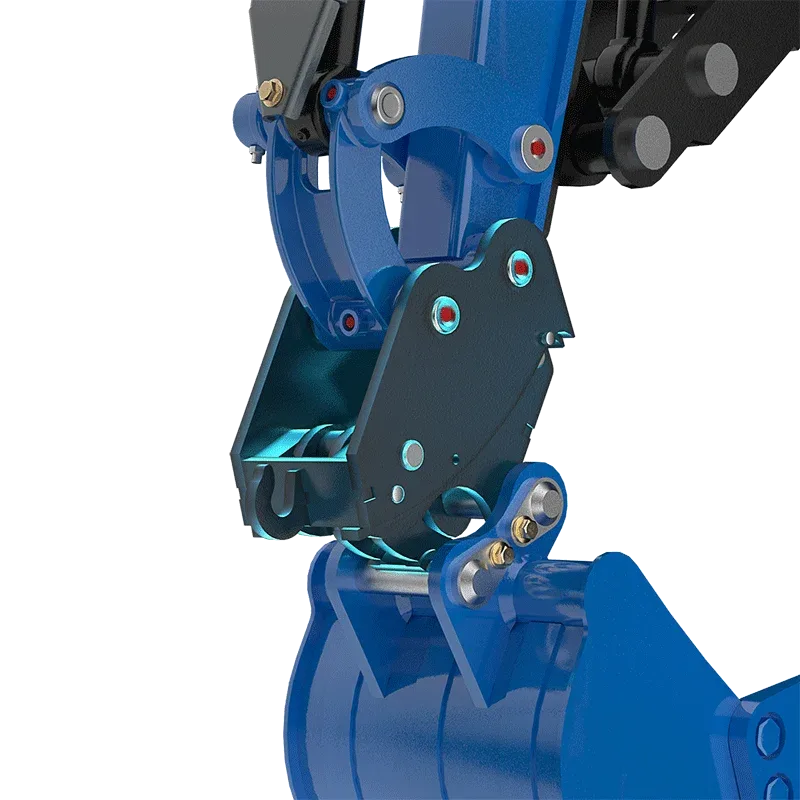

Mechanical quick coupler

A rugged quick coupler supports faster changes between buckets, breakers and compatible implements.

Key specifications

R10 at a glance.

Machine specifications in one place. Final values can vary by configuration, market and attachment package.

Operating weight: 1,142 kg
Machine weight: 1,040 kg
Maximum power: 8.2 kW
Maximum digging depth: 1,833 mm
Engine: Kubota Z482
Bucket capacity: 0.014 m³
Travel speed: 0–1.5 km/h
Gradeability: 30%
Maximum digging force: 9.2 kN
Maximum digging radius: 3,233 mm
Maximum digging height: 3,021 mm
Maximum dumping height: 2,247 mm
Maximum deflection angle: 121°
Track extension range: 900–1,200 mm

Before deciding

Specifications do not tell the whole story.

Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.
