R15

The R15 ECO is a balanced all-rounder for home infrastructure, small farms and structured dig-shape-finish workflows. It adds capability without becoming difficult to manage around residential sites.

Operating weight: 1,532 kg
Machine weight: 1,440 kg
Maximum power: 10.2 kW
Maximum digging depth: 1,807 mm

Machine highlights

Key features and dimensions.

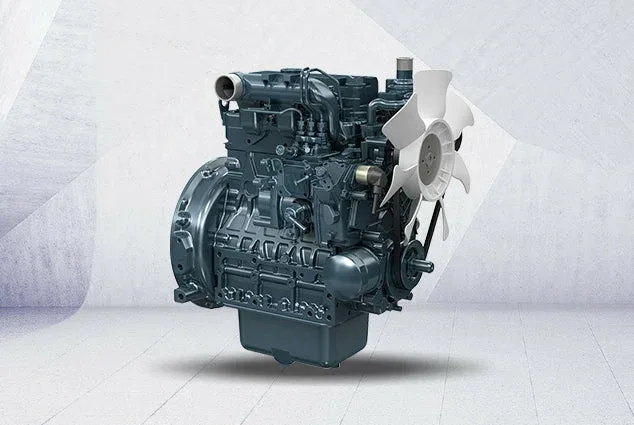

Three-cylinder Kubota power

The water-cooled D722 delivers stable 10.2 kW output with efficient fuel use and dependable everyday performance.

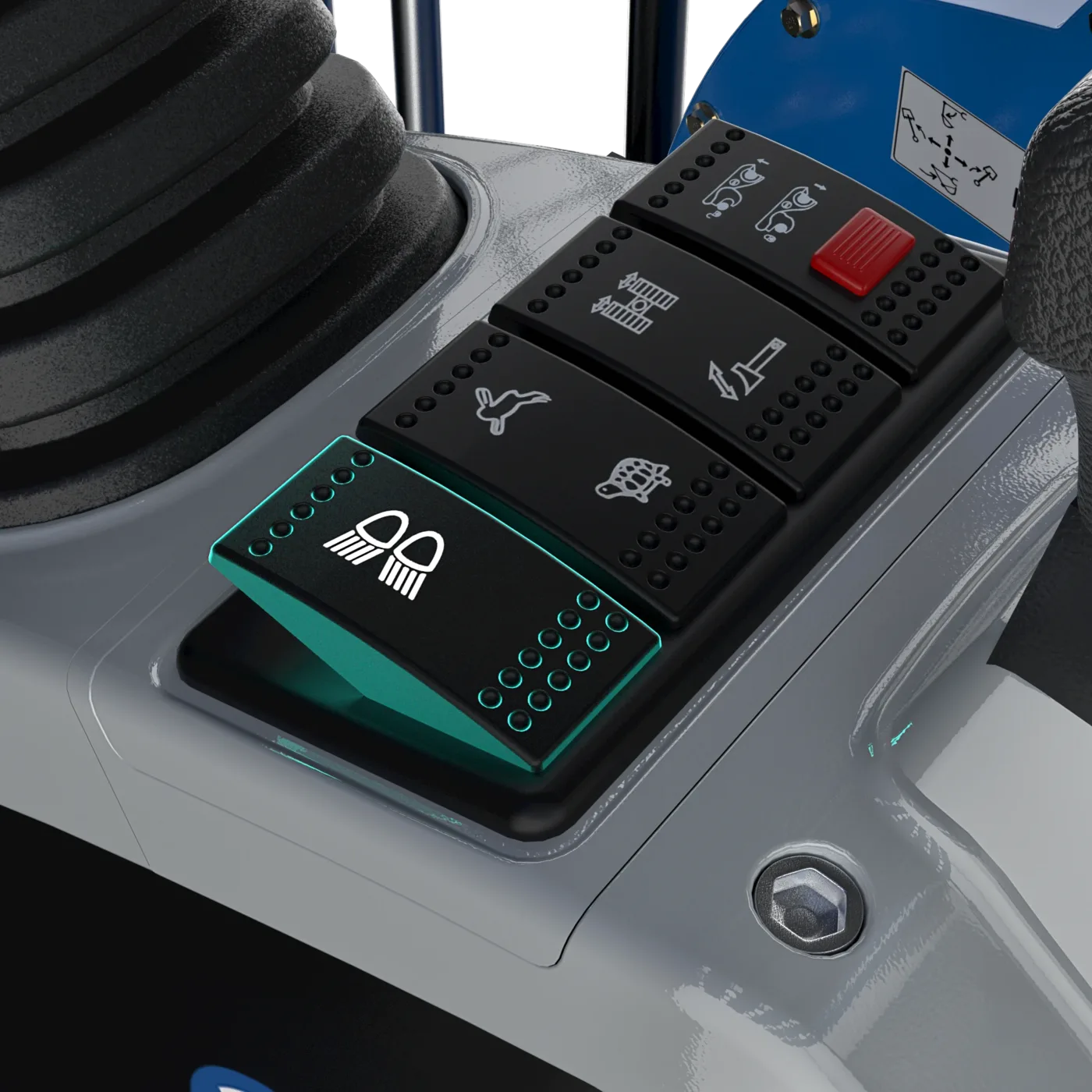

Two-speed travel

Selectable high and low travel speeds balance faster repositioning with added traction when site conditions demand it.

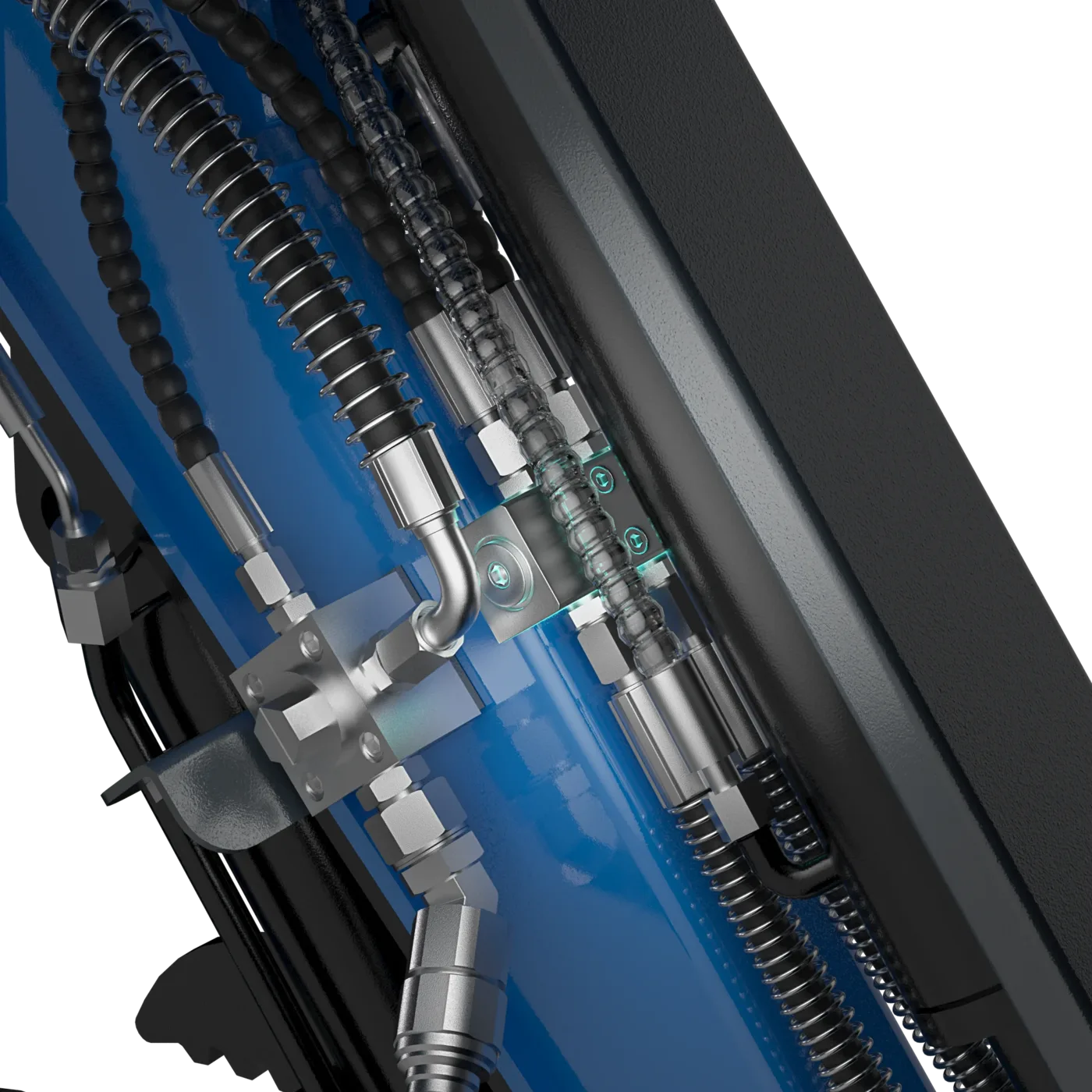

Attachment-ready hydraulics

Four-way auxiliary plumbing gives compatible hydraulic attachments dedicated circuits and quick connections.

Key specifications

R15 at a glance.

Machine specifications in one place. Final values can vary by configuration, market and attachment package.

Operating weight: 1,532 kg
Machine weight: 1,440 kg
Maximum power: 10.2 kW
Maximum digging depth: 1,807 mm
Engine: Kubota D722
Bucket capacity: 0.018 m³
Travel speed low / high: 0–1.5 / 0–2.5 km/h
Gradeability: 30%
Maximum digging force: 10.4 kN
Maximum digging radius: 3,274 mm
Maximum digging height: 3,046 mm
Maximum dumping height: 2,277 mm
Maximum deflection angle: 92°
Track extension range: 900–1,200 mm

Before deciding

Specifications do not tell the whole story.

Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.

Use the buying checklist
