R13 PRO

The R13 PRO steps up capacity for longer work sessions, driveway repairs, light grading and general digging. It offers more stability and output while remaining compact enough for property work.

Operating weight: 1,323 kg
Machine weight: 1,240 kg
Maximum power: 10.2 kW
Maximum digging depth: 2,044 mm

Machine highlights

Key features and dimensions.

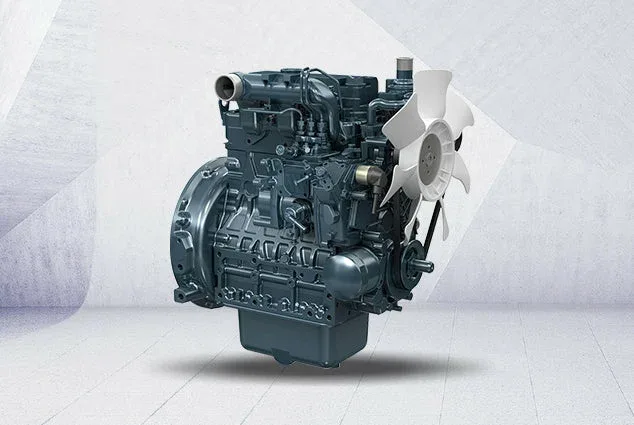

Strong, efficient power

A three-cylinder, water-cooled Kubota D722 provides stable 10.2 kW output across varied working conditions.

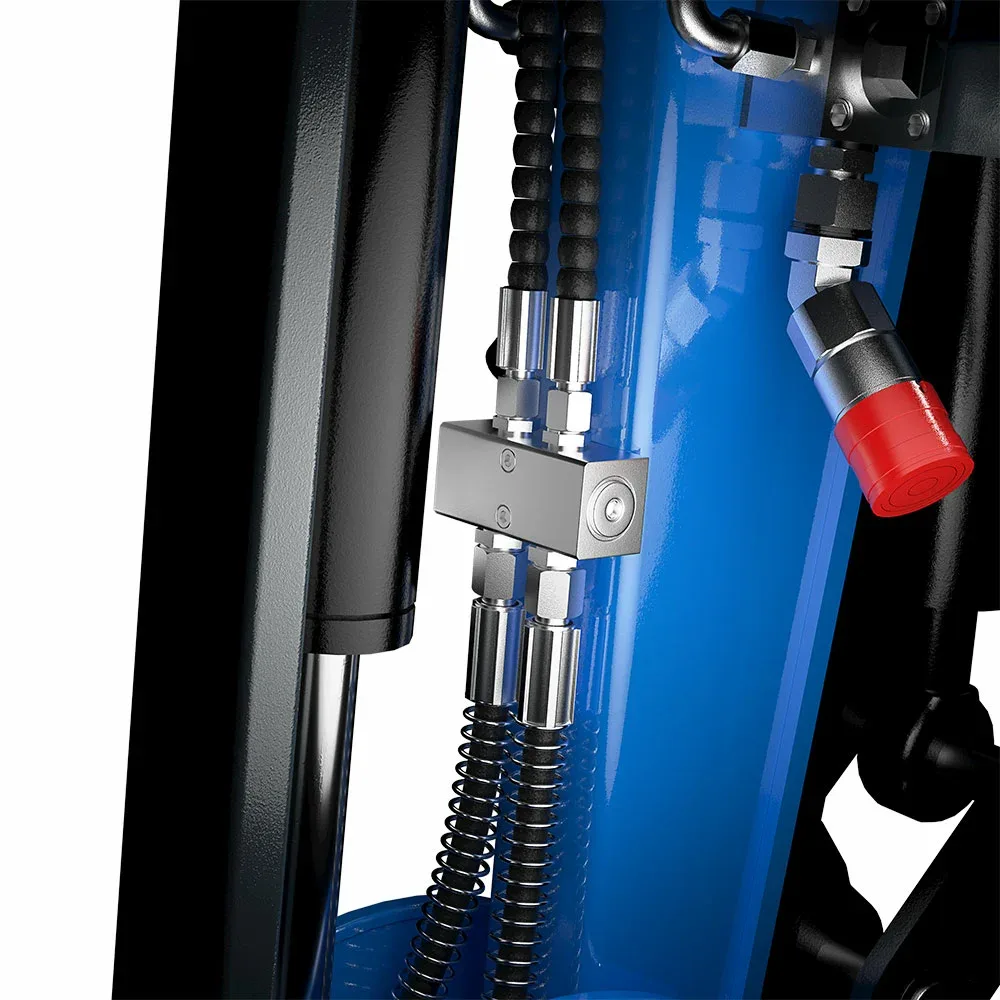

Four-way auxiliary lines

Separate quick-connect hydraulic circuits improve setup efficiency for compatible thumbs, couplers and attachments.

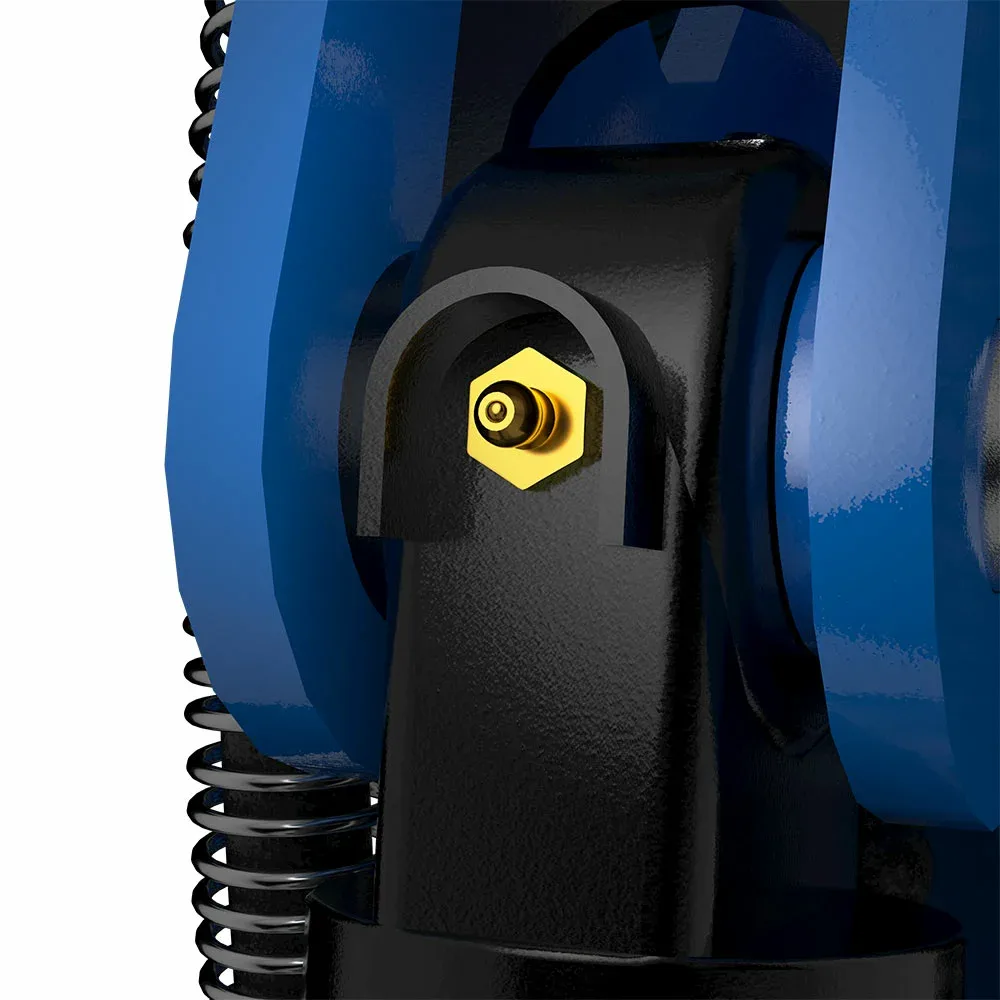

Service-friendly lubrication

Accessible boom grease points help protect pins and bushings from premature dry wear.

Key specifications

R13 PRO at a glance.

Machine specifications in one place. Final values can vary by configuration, market and attachment package.

Operating weight: 1,323 kg
Machine weight: 1,240 kg
Maximum power: 10.2 kW
Maximum digging depth: 2,044 mm
Engine: Kubota D722
Bucket capacity: 0.014 m³
Travel speed low / high: 0–1.8 / 0–2.8 km/h
Gradeability: 30%
Maximum digging force: 9.8 kN
Maximum digging radius: 3,456 mm
Maximum digging height: 2,905 mm
Maximum dumping height: 1,922 mm
Maximum deflection angle: 105°
Track extension range: 750–990 mm

Model details

Important specifications.

This page covers the R13-4 PRO with the Kubota D722 engine.
Engine certification and emissions requirements vary by destination market.

Before deciding

Specifications do not tell the whole story.

Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.
