R06

The R06 ECO is an ultra-compact, low-noise excavator for tight access, shallow trenching and light property maintenance. Its simple controls and narrow footprint make it a practical first machine where low disturbance matters.

Operating weight: 739 kg
Machine weight: 660 kg
Maximum power: 8.2 kW
Maximum digging depth: 1,001 mm

Machine highlights

Key features and dimensions.

Kubota-powered performance

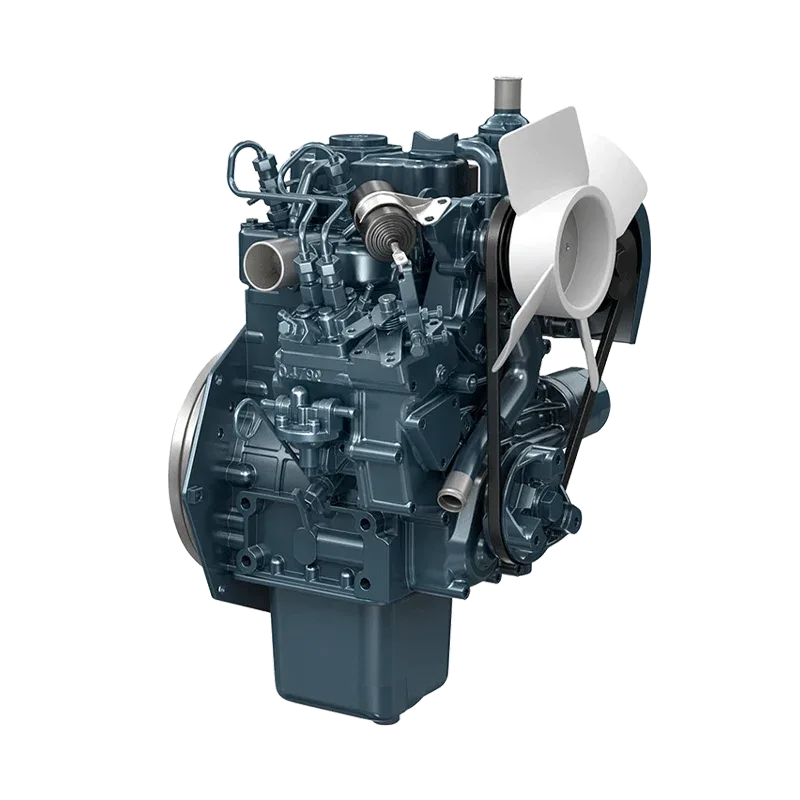

The 8.2 kW Kubota Z482 diesel balances useful output with low fuel consumption, vibration and noise.

Side-swing boom

Lateral boom movement helps the R06 work beside walls, corners and buried services without constant repositioning.

Built for narrow access

A body width of roughly 747 mm helps the machine pass through tight gateways and confined work areas.

Key specifications

R06 at a glance.

Machine specifications in one place. Final values can vary by configuration, market and attachment package.

Operating weight: 739 kg
Machine weight: 660 kg
Maximum power: 8.2 kW
Maximum digging depth: 1,001 mm
Engine: Kubota Z482
Bucket capacity: 0.014 m³
Travel speed: 0–1.5 km/h
Gradeability: 30%
Maximum digging force: 9.2 kN
Maximum digging radius: 2,565 mm
Maximum digging height: 2,236 mm
Maximum dumping height: 1,569 mm
Maximum deflection angle: 70°
Transport width: 747 mm
Transport height: 1,594 mm

Before deciding

Specifications do not tell the whole story.

Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.
