01

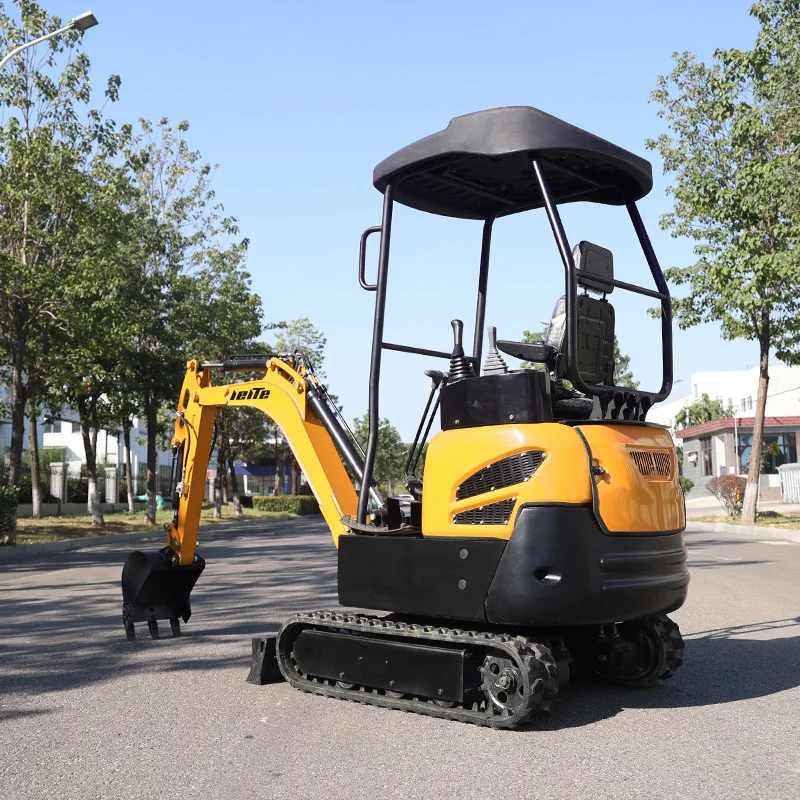

2,100 mm digging depth
The LT1017 reaches 2,100 mm below ground, with a 2,900 mm maximum digging distance and 1,550 mm dump height.
Mini machine guideSpecifications, dimensions and configuration details
LEITE LT1017
LEITE · Mini excavator
LT1017
The LEITE LT1017 is a 1,700 kg mini excavator with a 24 hp LD385 engine, 0.04 m³ bucket and a 2,100 mm maximum digging depth.
- Operating weight
- 1,700 kg
- Engine model
- LD385
- Rated power
- 24 hp
- Engine displacement
- 1.2 L
Machine highlights
Key features and dimensions.
02

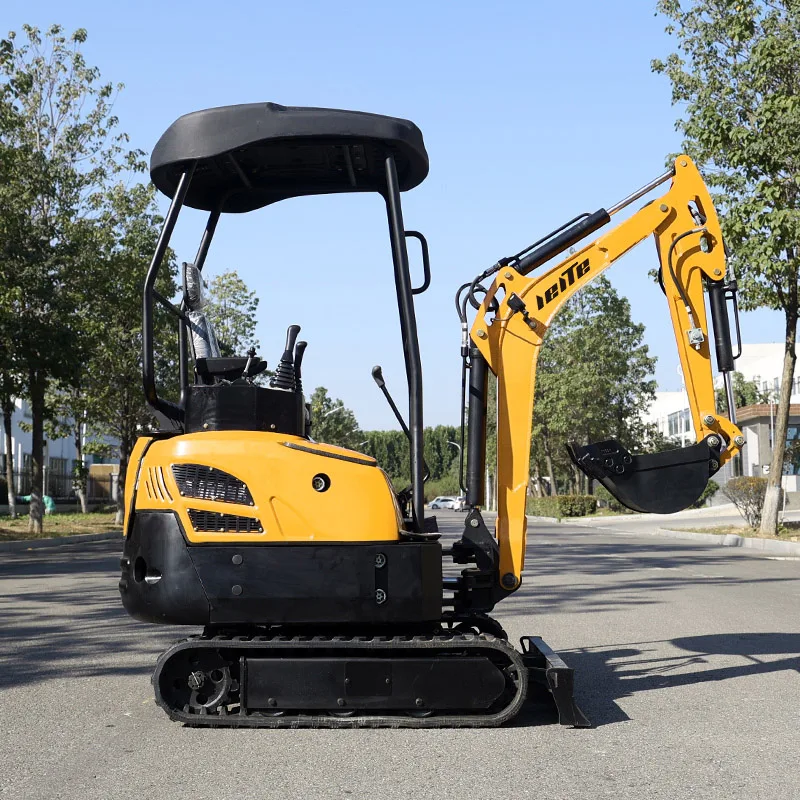

24 hp diesel power
The 1.2-litre LD385 engine produces 24 hp and drives a 0.04 m³ standard bucket.
03

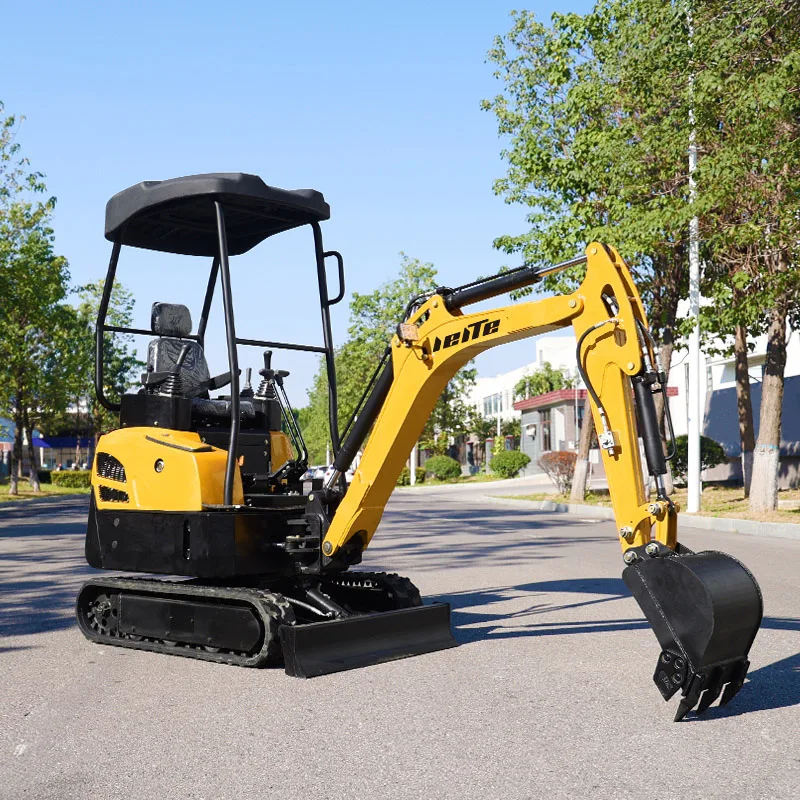

1,100 mm transport width
The compact width and 3,100 mm transport length keep the machine manageable for restricted jobsites and trailer planning.
Key specifications
LT1017 at a glance.
Machine specifications in one place. Final values can vary by configuration, market and attachment package.
- Operating weight
- 1,700 kg
- Engine model
- LD385
- Rated power
- 24 hp
- Engine displacement
- 1.2 L
- Bucket capacity
- 0.04 m³
- Bucket width
- 480 / 450 mm with / without teeth
- Maximum digging depth
- 2,100 mm
- Vertical digging depth
- 1,420 mm
- Maximum digging distance
- 2,900 mm
- Maximum digging height
- 2,740 mm
- Maximum dump height
- 1,550 mm
- Travel speed
- 2 km/h
- Swing speed
- 9 rpm
- Overall dimensions
- 3,100 × 1,100 × 2,300 mm
- Track width
- 180 mm
- Gradeability
- 35°
- Bucket digging force
- 14.8 kN
- Fuel tank
- 15 L
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
Before deciding
Specifications do not tell the whole story.
Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.
