R32

The R32 PRO brings semi-professional capacity to larger excavation volumes, pool work and light construction. It is the productivity step-up for projects that require greater stability and faster delivery.

Operating weight: 3,623 kg
Machine weight: 3,510 kg
Maximum power: 17.1 kW
Maximum digging depth: 2,827 mm

Machine highlights

Key features and dimensions.

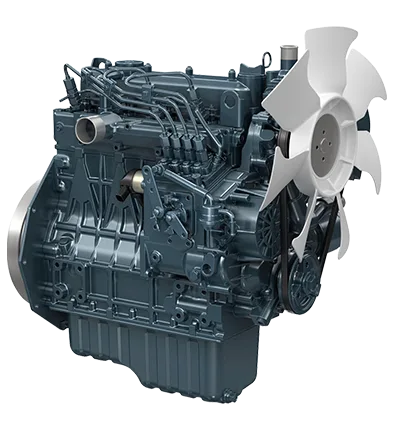

Kubota V1505 power

The four-cylinder, water-cooled V1505 supplies 17.1 kW with low noise and a compact engine layout.

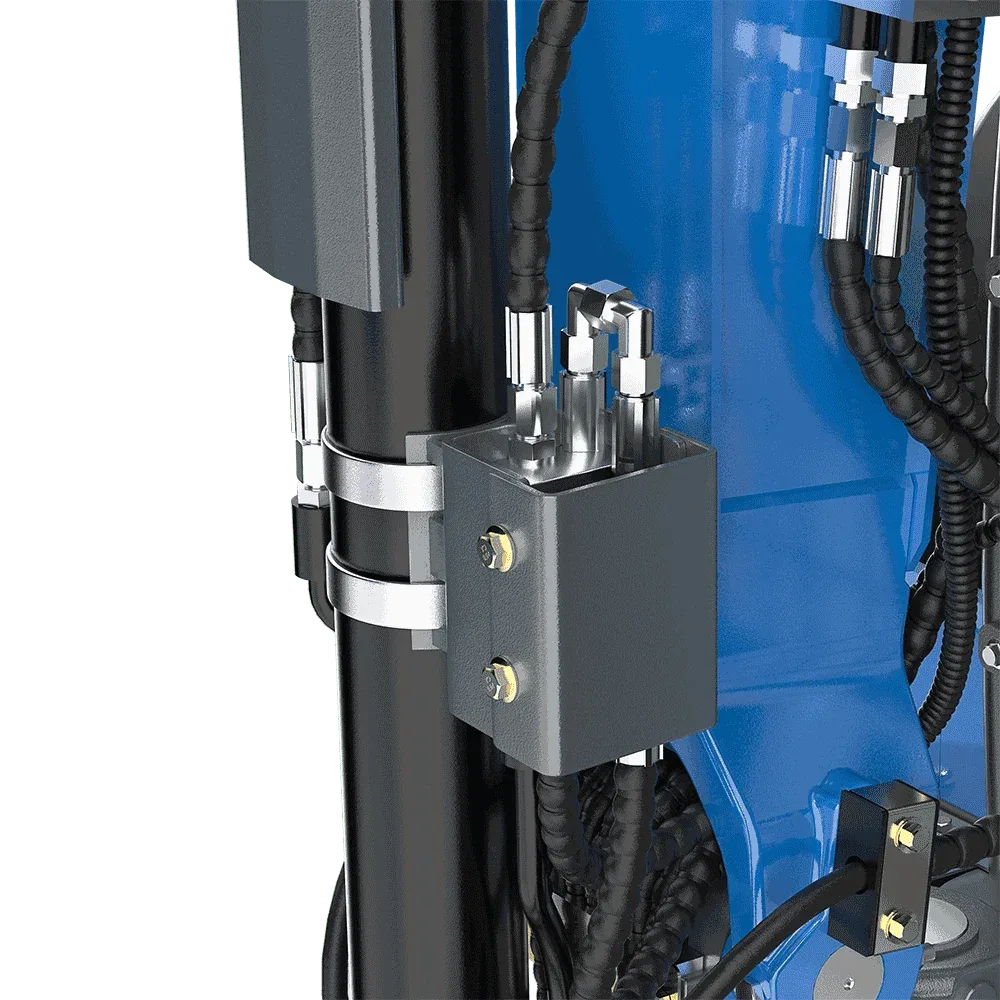

Boom safety valve

A one-way safety valve is designed to stop uncontrolled boom drop if a cylinder feed hose fails.

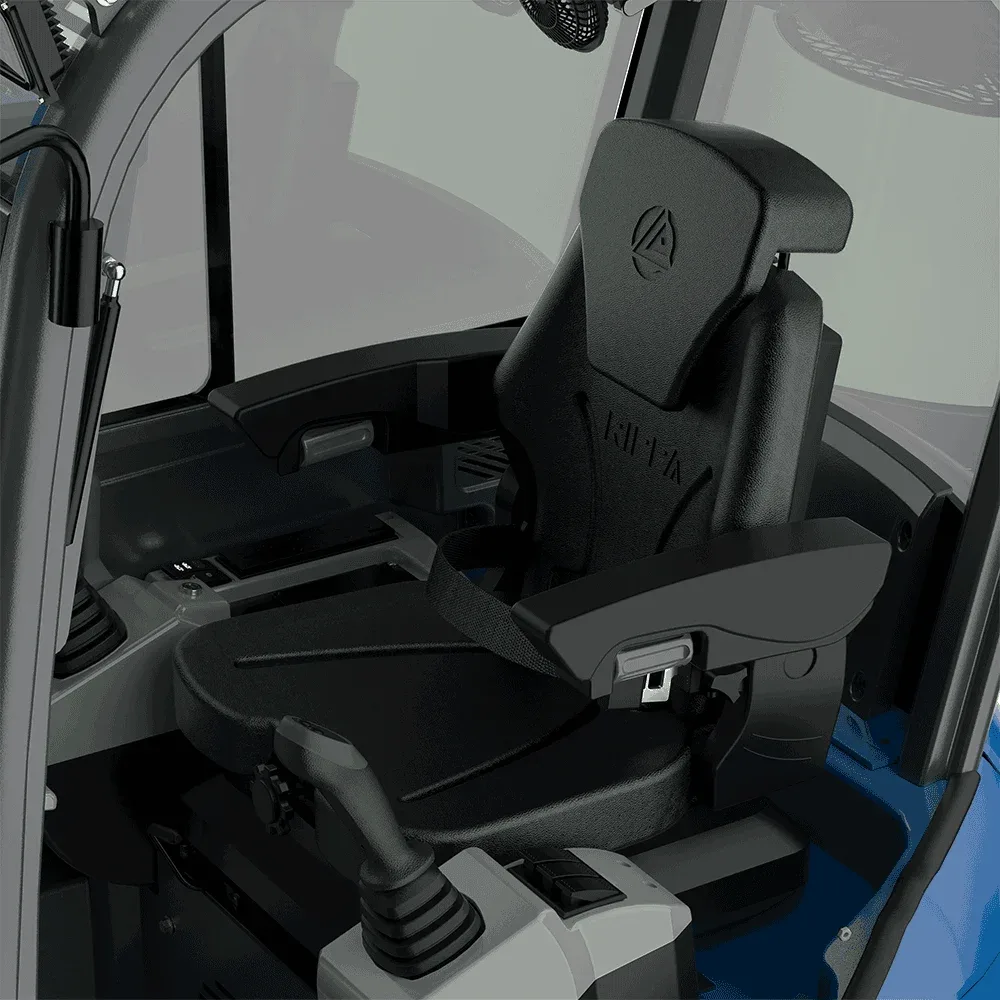

Air-suspension seat

Adjustable pneumatic cushioning and a high-back profile reduce vibration and operator fatigue during longer shifts.

Key specifications

R32 at a glance.

Machine specifications in one place. Final values can vary by configuration, market and attachment package.

Operating weight: 3,623 kg
Machine weight: 3,510 kg
Maximum power: 17.1 kW
Maximum digging depth: 2,827 mm
Engine: Kubota V1505
Bucket capacity: 0.08 m³
Travel speed low / high: 0–1.8 / 0–2.8 km/h
Gradeability: 30%
Maximum digging force: 27 kN
Maximum digging radius: 4,831 mm
Maximum digging height: 4,563 mm
Maximum dumping height: 3,181 mm
Maximum deflection angle: 110°
Engine displacement: 1.5 L
Engine cylinders: 4

Before deciding

Specifications do not tell the whole story.

Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.
