01

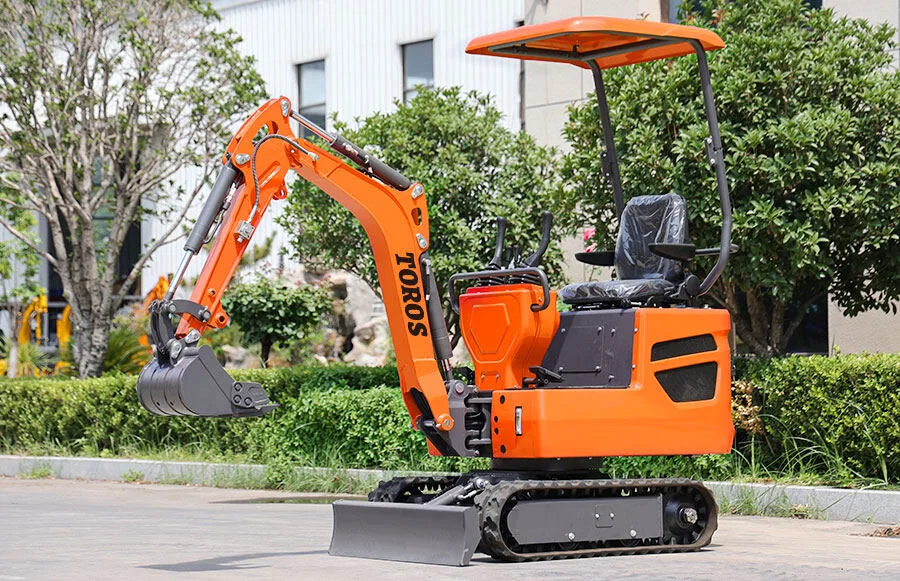

930 mm overall width
The narrow chassis is suited to gateways and side access, while the 2,870 mm transport length simplifies trailer planning.
Mini machine guideSpecifications, dimensions and configuration details
TOROS TE-10
TOROS · Mini excavator
TE-10
The TOROS TE-10 is a 1,000 kg mini excavator with a 930 mm width, hydraulic pilot controls and a protected upper-mounted boom cylinder.
- Operating weight
- 1,000 kg
- Engine options
- KOOP 192F / Briggs & Stratton
- Maximum power
- 7.6 kW / 10.07 kW
- Bucket capacity
- 0.022 m³
Machine highlights
Key features and dimensions.
02

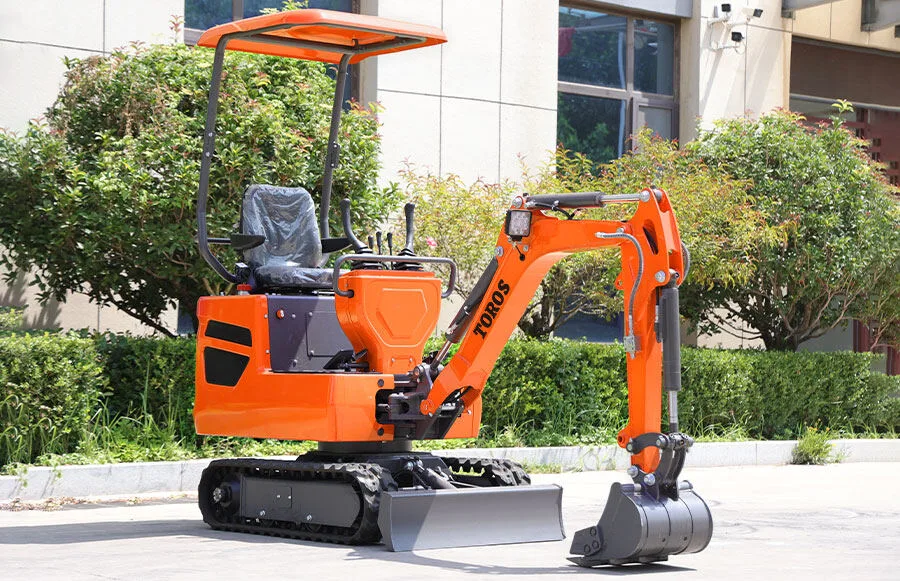

Hydraulic pilot controls
Pilot-operated joysticks provide smoother, more precise control with less physical effort during repetitive digging work.
03

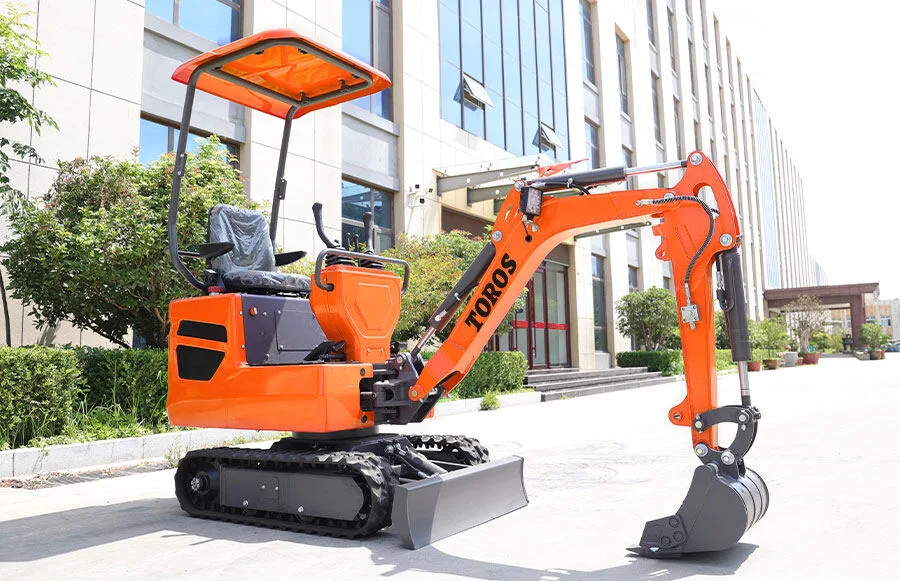

Protected boom cylinder
The boom cylinder sits above the boom, reducing its exposure to rocks, debris and impacts around the bucket work area.
Key specifications
TE-10 at a glance.
Machine specifications in one place. Final values can vary by configuration, market and attachment package.
- Operating weight
- 1,000 kg
- Engine options
- KOOP 192F / Briggs & Stratton
- Maximum power
- 7.6 kW / 10.07 kW
- Bucket capacity
- 0.022 m³
- Maximum travel speed
- 1.2 km/h
- Working pressure
- 16 MPa
- Hydraulic tank
- 18 L
- Fuel tank
- 8 L
- Gradeability
- 30°
- Maximum digging force
- 6.5 kN
- Overall dimensions
- 2,870 × 930 × 2,213 mm
- Maximum digging height
- 2,490 mm
- Maximum dump height
- 1,745 mm
- Maximum digging depth
- 1,725 mm
- Vertical digging depth
- 1,655 mm
- Maximum digging distance
- 3,030 mm
- Maximum ground reach
- 2,940 mm
- Front turning radius
- 1,490 mm
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
Model details
Important specifications.
- The KOOP 192F configuration produces 7.6 kW.
- The Briggs & Stratton configuration produces 10.07 kW.
Before deciding
Specifications do not tell the whole story.
Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.
