01
Short-tail layout
The compact rear body reduces tail swing around walls, landscaping and other obstacles on restricted jobsites.
Mini machine guideSpecifications, dimensions and configuration details
TOROS TE-16
TOROS · Mini excavator
TE-16

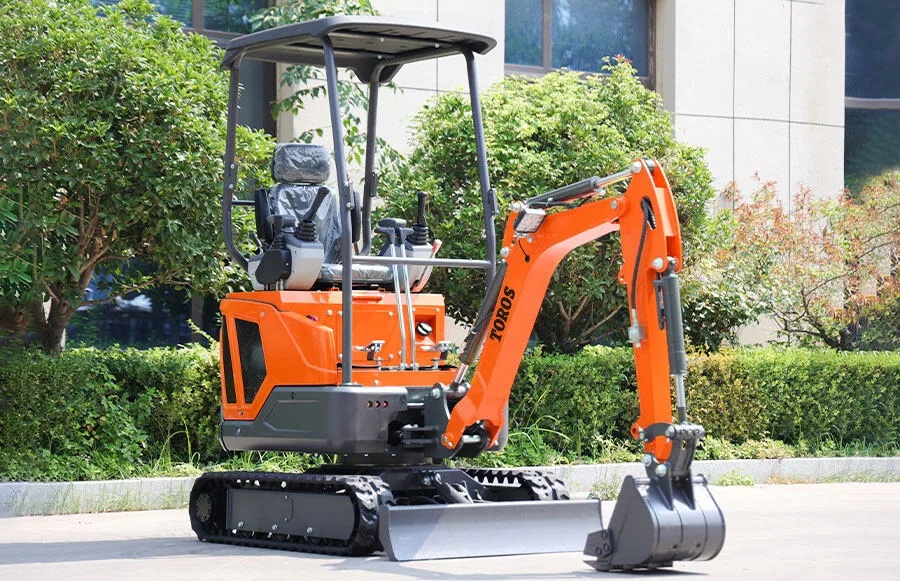

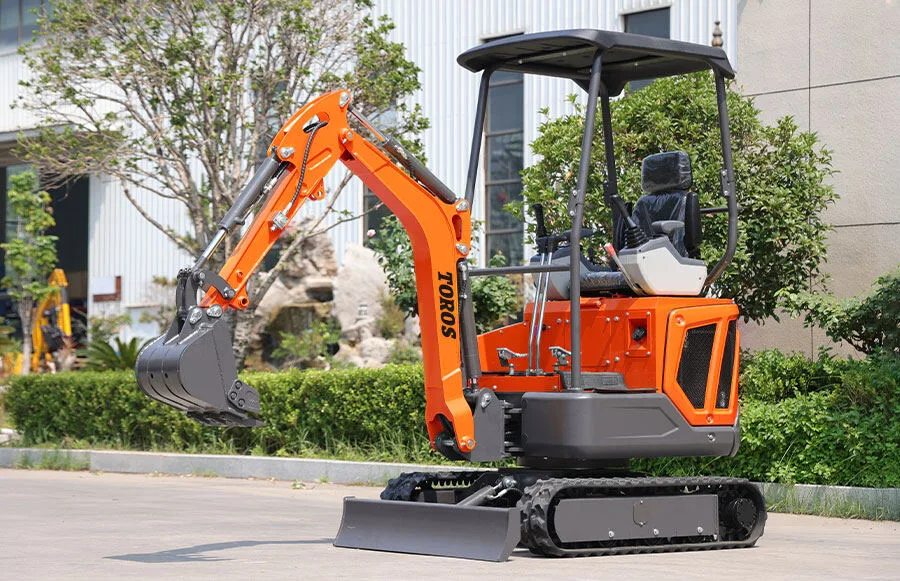

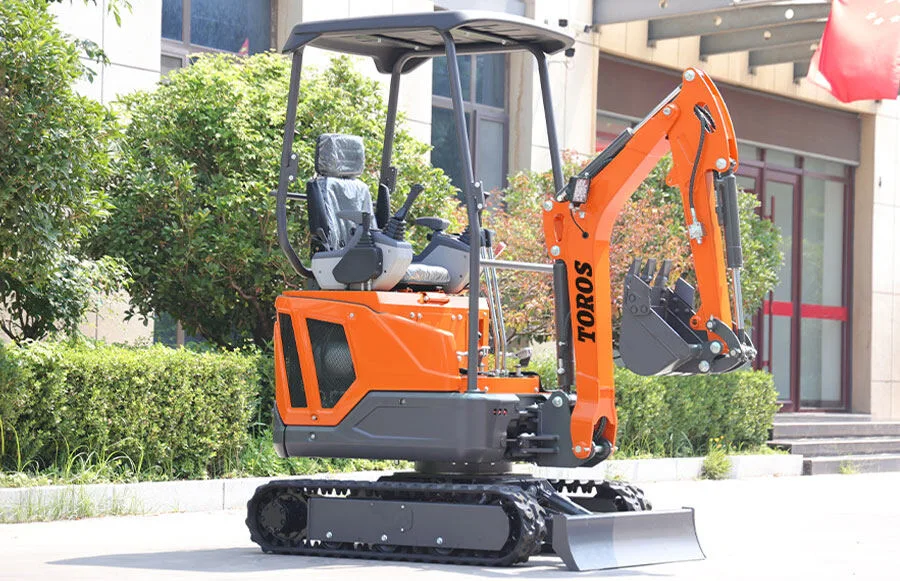

The TOROS TE-16 is a 1,600 kg short-tail mini excavator with a 1,100 mm overall width, 1,780 mm digging depth and two engine configurations.
- Operating weight
- 1,600 kg
- Engine options
- Kubota D722-E4B / Laidong LL380B
- Maximum power
- 10.2 kW / 19 kW
- Bucket capacity
- 0.03 m³
Machine highlights
Key features and dimensions.
02
1,780 mm digging depth
The TE-16 combines a 1,780 mm digging depth with a 3,420 mm maximum reach and 2,030 mm dump height.
03
1,100 mm overall width
The 1,100 mm width and 3,060 mm transport length keep the machine within the compact excavator class.
Key specifications
TE-16 at a glance.
Machine specifications in one place. Final values can vary by configuration, market and attachment package.
- Operating weight
- 1,600 kg
- Engine options
- Kubota D722-E4B / Laidong LL380B
- Maximum power
- 10.2 kW / 19 kW
- Bucket capacity
- 0.03 m³
- Maximum travel speed
- 1.8 km/h
- Overall dimensions
- 3,060 × 1,100 × 2,220 mm
- Maximum digging height
- 2,970 mm
- Maximum dump height
- 2,030 mm
- Maximum digging depth
- 1,780 mm
- Vertical digging depth
- 1,550 mm
- Maximum digging reach
- 3,420 mm
- Front turning radius
- 1,350 mm
- Hydraulic tank
- 17 L
01
02
03
04
05
06
07
08
09
10
11
12
13
Model details
Important specifications.
- The Kubota D722-E4B version produces 10.2 kW.
- The Laidong LL380B version produces 19 kW.
Before deciding
Specifications do not tell the whole story.
Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.
