01
2,210 mm digging depth
The TE-18 reaches 2,210 mm below ground and 2,135 mm at maximum dump height for trenching, drainage and loading work.
Mini machine guideSpecifications, dimensions and configuration details
TOROS TE-18
TOROS · Mini excavator
TE-18

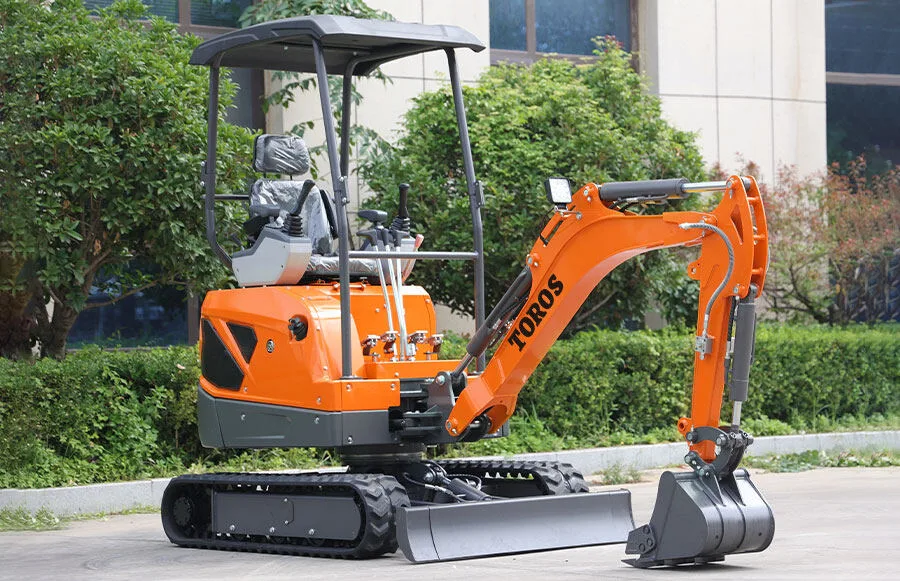

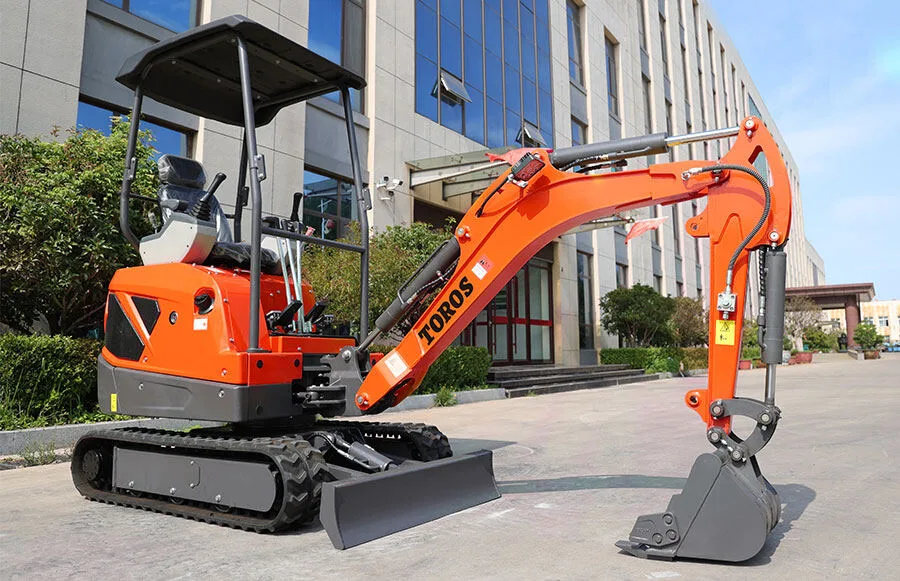

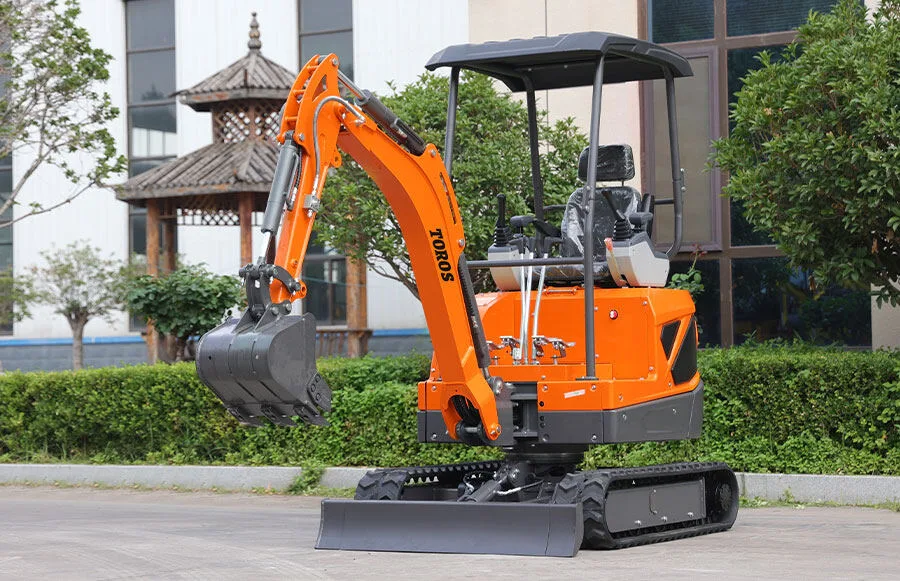

The TOROS TE-18 is a 1,800 kg mini excavator with a 1,100 mm width, boom swing and a 2,210 mm maximum digging depth.
- Operating weight
- 1,800 kg
- Engine options
- Kubota D722-E4B / Laidong KM385B
- Maximum power
- 10.2 kW / 18.1 kW
- Bucket capacity
- 0.03 m³
Machine highlights
Key features and dimensions.
02
Boom swing
The offset boom helps the operator dig alongside walls, foundations and boundaries without repositioning the entire machine.
03
Two engine configurations
Choose the 10.2 kW Kubota D722-E4B or the higher-output 18.1 kW Laidong KM385B configuration.
Key specifications
TE-18 at a glance.
Machine specifications in one place. Final values can vary by configuration, market and attachment package.
- Operating weight
- 1,800 kg
- Engine options
- Kubota D722-E4B / Laidong KM385B
- Maximum power
- 10.2 kW / 18.1 kW
- Bucket capacity
- 0.03 m³
- Maximum travel speed
- 2 / 1.6 km/h
- Overall dimensions
- 3,237 × 1,100 × 2,282 mm
- Maximum digging height
- 3,065 mm
- Maximum dump height
- 2,135 mm
- Maximum digging depth
- 2,210 mm
- Vertical digging depth
- 1,470 mm
- Front turning radius
- 1,495 mm
- Working pressure
- 16 MPa
- Fuel tank
- 18.5 L
- Hydraulic tank
- 18 L
- Gradeability
- 30°
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
Model details
Important specifications.
- The Kubota D722-E4B configuration produces 10.2 kW.
- The Laidong KM385B configuration produces 18.1 kW.
Before deciding
Specifications do not tell the whole story.
Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.
Use the buying checklistKeep comparing
