01

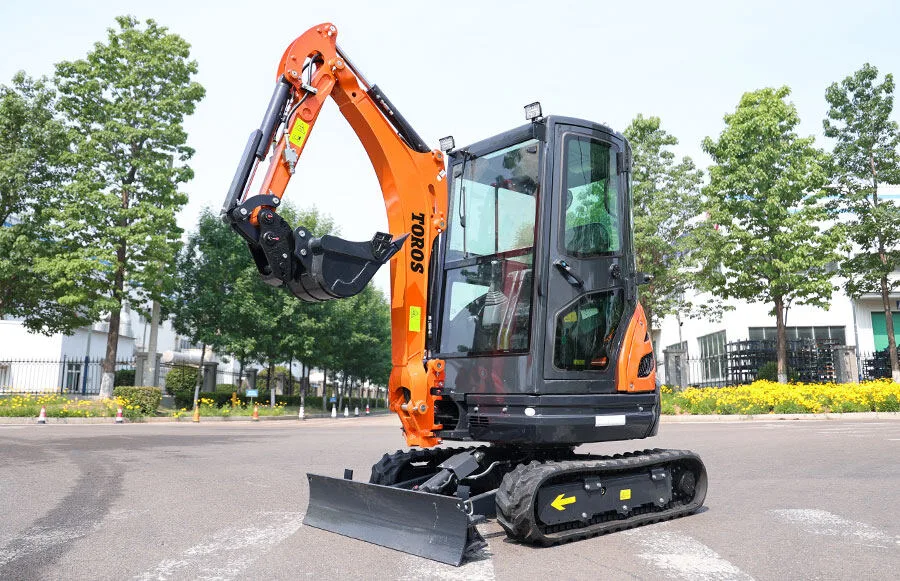

2,430 mm digging depth
The TE-25S combines a 2,430 mm maximum digging depth with a 2,500 mm dump height for trenching and loading work.
Mini machine guideSpecifications, dimensions and configuration details
TOROS TE-25S
TOROS · Mini excavator
TE-25S
The TOROS TE-25S is a 2,500 kg mini excavator with a 0.066 m³ bucket, 2,430 mm digging depth and a choice of Yanmar or Kubota diesel engines.
- Operating weight
- 2,500 kg
- Engine options
- Yanmar 3TNV76 / Yanmar 3TNV80F / Kubota D1105
- Maximum power
- 15 kW / 18.2 kW
- Bucket capacity
- 0.066 m³
Machine highlights
Key features and dimensions.
02

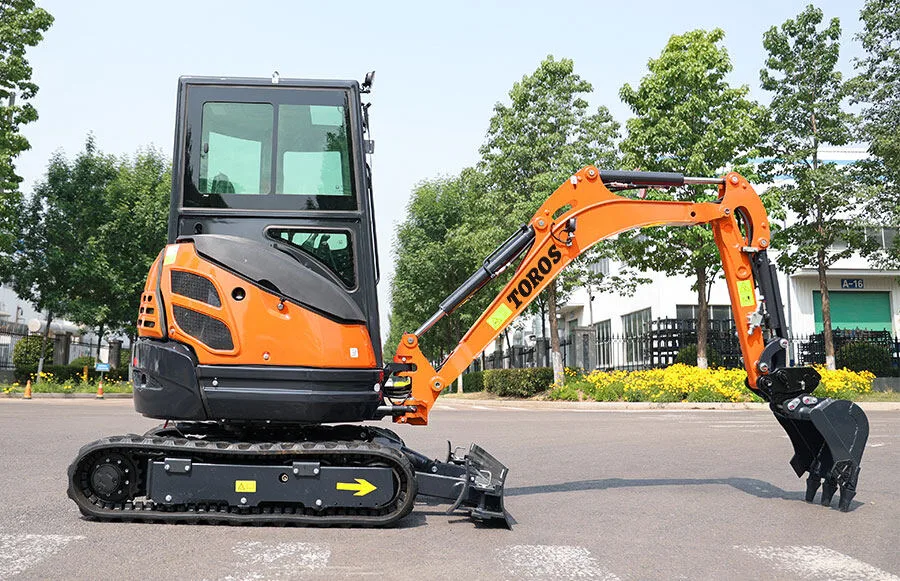

Three diesel-engine choices
Yanmar 3TNV76, Yanmar 3TNV80F and Kubota D1105 configurations cover the 15 kW and 18.2 kW output classes.
03

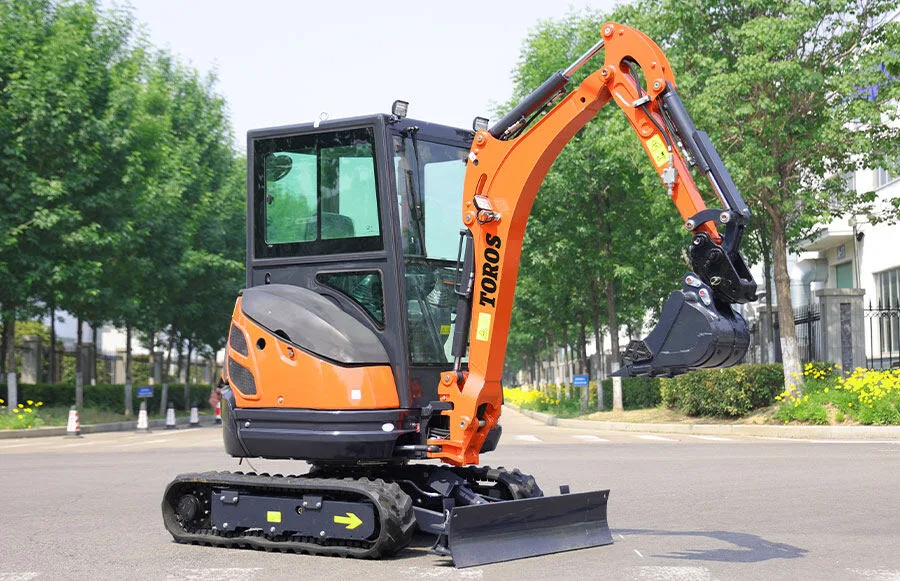

Rubber or steel tracks
Rubber tracks suit finished surfaces and transport-oriented work, while steel tracks are available for rougher ground conditions.
Key specifications
TE-25S at a glance.
Machine specifications in one place. Final values can vary by configuration, market and attachment package.
- Operating weight
- 2,500 kg
- Engine options
- Yanmar 3TNV76 / Yanmar 3TNV80F / Kubota D1105
- Maximum power
- 15 kW / 18.2 kW
- Bucket capacity
- 0.066 m³
- Swing speed
- 9.2 rpm
- Overall dimensions
- 3,730 × 1,280 × 2,240 mm
- Track length
- 2,300 mm
- Track material
- Rubber / steel
- Dozer blade height
- 280 mm
- Fuel tank
- 28 L
- Gradeability
- 30°
- Maximum digging force
- 18.4 kN
- Maximum digging height
- 3,700 mm
- Maximum dump height
- 2,500 mm
- Maximum digging depth
- 2,430 mm
- Vertical digging depth
- 1,850 mm
- Front turning radius
- 1,850 mm
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
Model details
Important specifications.
- Engine configurations produce either 15 kW or 18.2 kW.
- Rubber and steel track configurations are available.
Before deciding
Specifications do not tell the whole story.
Check service access, parts availability, warranty terms, controls, build quality and the exact configuration before choosing a machine.
